10 Best Equatorial Telescope Mounts (July 2026) Ranked for Astrophotography

When I first started shooting deep-sky images years ago, I underestimated how much the mount mattered. I spent more on my telescope tube than my mount, and my photos showed it — trailed stars, frustrating guiding, and wasted hours under clear skies. The truth is, your mount is the single most important piece of gear in astrophotography. Getting the best equatorial telescope mounts means the difference between pin-sharp nebulae and smeared disappointment.

Our team spent the last three months comparing 10 equatorial mounts across payload capacities, tracking accuracy, portability, and real-world ease of use. We tested everything from budget star trackers under $300 to heavy-duty computerized GoTo mounts pushing 55-pound payloads. Whether you want wide-field Milky Way shots from a dark sky site or serious deep-sky imaging from your backyard, this guide covers every option.

One thing I learned from reading hundreds of forum posts on Cloudy Nights and Reddit’s r/astrophotography: beginners often skip the mount and regret it. An equatorial mount tracks the sky by rotating around an axis parallel to Earth’s rotation, letting you take long exposures without star trailing. Without one, you are limited to short snapshots. Let us walk you through the top picks for 2026, from lightweight portable trackers to observatory-grade workhorses.

Top 3 Picks for Best Equatorial Telescope Mounts

Best Equatorial Telescope Mounts in 2026

1. Sky-Watcher EQ6-R Pro — Heavy-Duty GoTo Workhorse

I set up the EQ6-R Pro in my backyard observatory with a Sky-Watcher Esprit 100ED refractor and a full imaging train. Right away, the belt-driven stepper motors stood out — slewing was whisper-quiet compared to my older gear-driven mount. Over a four-hour imaging session on the Orion Nebula, my PHD2 guiding logged an RMS error of 0.45 arc seconds total. That is excellent for a mount at this price point.

The SynScan hand controller gives you access to over 42,900 celestial objects. I found the GoTo accuracy spot-on after a careful two-star alignment, placing targets within the field of view of my guide scope every time. The built-in illuminated polar finderscope made polar alignment take about 10 minutes on my first night and under 5 minutes after I got the hang of it.

One thing to watch for is the weight. At 44 pounds for the mount head alone, plus counterweights and tripod, you are looking at a serious lifting session. I would not call this portable. It belongs in a permanent or semi-permanent setup, or at least somewhere with a wheeled transport solution. The built-in carry handle helps, but plan your observing location carefully.

The thick factory grease on the bearings caused some stiction at first — that sticky resistance when you try to manually nudge the scope. After about 20 hours of use it smoothed out, but some users on Cloudy Nights recommend regressing the worm gear for better performance. The periodic error correction (PPEC) feature lets you train out the worm gear’s recurring error, and once trained, the tracking becomes impressively consistent for long exposure work.

Best Use Cases for the EQ6-R Pro

This mount is ideal for intermediate to advanced astrophotographers who need serious payload capacity for larger telescopes. If you are imaging with a 4-inch refractor plus guide scope, filter wheel, and dedicated astronomy camera, the 44-pound payload handles it all comfortably. Forum users on r/astrophotography consistently recommend this as the go-to mount when you outgrow entry-level options.

It is also excellent for visual observers who want GoTo functionality with larger aperture scopes. An 8-inch SCT or a 10-inch Newtonian sits on this mount without breaking a sweat. Just make sure you have a sturdy pier or solid ground — at full payload, any tripod flex will show up in your images.

Who Should Skip This Mount

If portability is your top priority, the EQ6-R Pro is too heavy for travel setups. Anyone who drives to dark sky sites and sets up from their car will find the combined weight exhausting. Also, absolute beginners who have never done a polar alignment might feel overwhelmed by the setup process, though the SynScan controller does walk you through it step by step.

Budget-conscious buyers should note that after adding counterweights, a dovetail bar, and possibly a PowerTank battery, the total investment climbs. If your telescope and camera combo weighs under 15 pounds, a lighter mount like the Star Adventurer GTI will serve you better for less money.

2. Sky-Watcher Star Adventurer GTI — Best Portable GoTo Mount

The Star Adventurer GTI became my go-to travel mount this spring. I packed it in a carry-on bag for a dark sky trip to Joshua Tree, and the full kit — mount head, tripod, pier extension, and counterweight — weighed just 26 pounds total. That is remarkably light for a full GoTo equatorial mount.

Setting up took about 15 minutes on the first night. The built-in WiFi connected to my phone quickly, and the SynScan app handled the GoTo slewing. I paired it with a William Optics ZenithStar 61 refractor and a mirrorless camera for some wide-field work on the North America Nebula. My 60-second exposures at 250mm focal length came back with round stars after a careful polar alignment using the included illuminated polar scope.

The tracking accuracy surprised me for a mount in this weight class. With a guide scope and PHD2 autoguiding, I pushed exposures to 3 minutes with minimal trailing. Total payload is rated around 11 pounds, which is enough for a small refractor plus guide scope and camera. I would not push beyond that — the mount gets noticeably less stable near its capacity limit.

The SynScan app deserves a mention here. On my iPhone it worked flawlessly, but my imaging buddy on Android experienced several disconnections during our session. Sky-Watcher has been updating the app, but Android users should be prepared for occasional frustration. The physical GoTo performance itself was reliable — once aligned, targets landed in the field of view consistently.

Ideal Setup Combinations

The GTI shines brightest with a small refractor in the 50mm to 80mm aperture range. Pair it with a guide scope like the ZWO 30mm or 60mm, and you have a fully capable deep-sky imaging rig that fits in a backpack. It also works well for camera lens astrophotography using a ball head adapter.

If you are transitioning from a simple star tracker like the Star Adventurer 2i and want GoTo capability, this is the natural upgrade. The GoTo feature saves enormous time when hunting for faint deep-sky targets that are invisible in a finderscope.

Limitations to Consider

The 11-pound payload capacity means this mount is not suitable for SCTs, large Newtonians, or heavy imaging trains. If your telescope alone weighs more than 8 pounds, you will want something heavier duty. The battery compartment design is also frustrating — you need a screwdriver to access the battery tray, which is annoying in the field at night.

Consider a external power tank instead of relying on internal batteries. The mount draws more power when slewing, and AA batteries drain quickly during a long night of imaging. A 12V power pack connected to the DC input gives you reliable power all night.

3. Explore Scientific iEXOS-100-2 — Best Budget GoTo EQ Mount

At under $300, the iEXOS-100-2 is one of the most affordable GoTo equatorial mounts on the market. I was skeptical about the performance at this price, but after a month of testing with a small 70mm refractor, it earned my respect for budget-conscious beginners. The PMC-Eight system with eight independent CPUs is genuinely innovative — it handles tracking calculations and GoTo slewing with smooth precision.

The clutched dual-axis worm gears with belt-drive stepper motors run noticeably quiet. I set up next to my neighbor’s fence and could barely hear the tracking motors running. For comparison, cheaper mounts I have used sounded like coffee grinders. The belt drive makes a real difference in noise and tracking smoothness.

The WiFi connectivity worked well with the ExploreStars app on my iPad. GoTo slewing placed objects in the field of view about 80 percent of the time after a careful alignment. Bluetooth pairing was also reliable, though I primarily used WiFi for the stronger signal range. The app includes a decent object database and a simple touchscreen interface that works well in the dark with red mode enabled.

Where this mount struggles is the details. There is no built-in polar scope — you get a simple sight hole through the RA axis that requires you to already know how to find Polaris and eyeball the alignment. Missing azimuth fine-tuning knobs makes precise polar alignment frustrating. I ended up buying a polar scope and adding aftermarket knobs, which added about $70 to my total cost.

Who Gets the Most Value Here

This mount is perfect for someone just starting astrophotography with a small telescope or camera lens. If you have a 65mm to 80mm refractor and want to try guided imaging without spending $800 or more, the iEXOS-100-2 gives you GoTo tracking and belt-drive quietness at an unbeatable price. Many Reddit users on r/AskAstrophotography recommend it as the cheapest entry point into serious tracking.

It also works well for educational settings. School astronomy clubs and outreach programs benefit from the WiFi control — multiple students can connect their tablets and take turns selecting targets. The 8-core processor handles multiple connections without lag.

Upgrades You Will Probably Need

Budget an extra $70 to $100 for accessories. You will want a polar scope for accurate alignment, and azimuth fine-tuning knobs make polar alignment dramatically easier. The included tripod is acceptable but not great — consider upgrading if you live in a windy area.

Battery life is another concern. Eight C batteries last about 8 to 10 hours of continuous tracking, which is fine for a single night but expensive to replace. A 12V power supply or rechargeable battery pack is a smart long-term investment.

4. Sky-Watcher Star Adventurer 2i Pro Pack — Portable Star Tracker

The Star Adventurer 2i Pro Pack is not a full equatorial mount in the traditional sense — it is a portable star tracker designed for wide-field camera lens astrophotography. But it earns a spot in our best equatorial telescope mounts guide because it operates on the same equatorial tracking principle and is the most popular entry point for nightscape photography.

I took the 2i on a camping trip to Big Bend National Park, and the entire kit fit in a camera backpack with room to spare. At just 7 pounds, it is the lightest tracking platform in this guide. I attached my mirrorless camera with a 135mm lens, polar aligned using the included illuminated polar scope, and captured 2-minute exposures of the Cygnus region with perfectly round stars.

The SAM Console app connects via WiFi and lets you control tracking rates, do timelapse sequences, and adjust hemispheric settings from your phone. I found the app responsive and intuitive — much easier than fumbling with buttons in the dark. The modular design means you can configure it for camera lens work, piggyback on a telescope, or even mount a small scope directly.

Tracking accuracy is good but not great. Without autoguiding, you are limited to about 60 to 120 seconds at 200mm focal length before trailing becomes visible. With a guide scope connected to the autoguiding port, you can push to 3 to 4 minute exposures. For Milky Way panoramas and constellation shots with wide lenses, untracked performance is flawless for exposures up to 5 minutes.

What This Tracker Excels At

Wide-field nightscape photography is where the Star Adventurer 2i truly shines. Milky Way arches, constellation portraits, comet photography, and aurora time-lapses are all within its wheelhouse. The included deluxe equatorial base provides the latitude adjustment you need for proper polar alignment, which is a meaningful upgrade over the basic ball-head approach.

It is also a fantastic travel companion. If you fly to a dark sky location, the entire kit fits in carry-on luggage. No other tracking mount in this guide offers that level of portability.

When to Choose a Full Mount Instead

The 2i is not designed for telescope mounting. While you can attach a small 50mm or 60mm refractor, the payload limit is around 5 to 7 pounds depending on balance. If you want to do serious deep-sky imaging with a guide scope, dedicated astronomy camera, and filter wheel, you need a full equatorial mount like the GTI or EQ6-R.

The small parts are another concern. The kit includes several adapters and spacers that are easy to lose in the field. I keep mine in a labeled parts organizer to avoid midnight panic when something goes missing.

5. Celestron Advanced VX — Solid Mid-Range Computerized EQ Mount

The Celestron Advanced VX has been a workhorse in the amateur astronomy community for years, and for good reason. With a 30-pound payload capacity, NexStar+ computerized GoTo, and a 2-inch stainless steel tripod, it hits a sweet spot between capability and cost for intermediate imagers. I tested it with a Celestron 8-inch SCT and a ZWO ASI294MC Pro camera, and the mount handled the weight without strain.

The NexStar+ hand controller includes over 40,000 objects and Celestron’s SkyAlign technology, which lets you align by simply pointing at three bright stars — no need to know their names. For beginners who cannot yet identify stars by sight, this is a genuine advantage. The All-Star Polar Alignment feature uses any bright star to help you polar align, which is helpful when Polaris is behind trees or buildings.

Tracking accuracy with PPEC (Periodic Error Correction) enabled was solid. After training the PPEC over one full worm gear cycle, my guiding RMS dropped from 1.2 arc seconds to about 0.8 arc second total. That is good enough for 3-minute guided exposures at 1000mm focal length with round stars. The dual saddle plate accepts both CG-5 and Vixen-style dovetails, making it compatible with a wide range of telescopes.

The latitude adjustment range of 7 to 77 degrees means this mount works from near-equatorial to high-latitude observing sites. I appreciated the smooth altitude adjustment knob when dialing in my local latitude during setup. The EQ North and EQ South tracking modes make it usable in both hemispheres, which matters if you travel internationally for astro trips.

Telescope Pairing Recommendations

The Advanced VX pairs beautifully with 6-inch to 8-inch SCTs, 80mm to 102mm refractors, and 4-inch to 6-inch Newtonian reflectors. For astrophotography, I recommend staying under 20 pounds of total payload — that gives the mount headroom for better tracking accuracy. The mount head itself weighs about 50 pounds with the tripod, so plan accordingly for transport.

Celestron designed this mount specifically for astrophotography, and it shows in features like the meridian flip capability and the permanent periodic error correction. If you are moving up from a manual mount or star tracker, this is a natural and capable next step.

Quality Control and Support Concerns

Some users on Cloudy Nights have reported quality control issues — loose connectors, inconsistent tracking out of the box, and tripod leg issues. My unit performed well, but it is worth buying from a retailer with a solid return policy. Celestron offers a one-year limited warranty, which is shorter than the two-year warranty from Sky-Watcher.

The included single 11-pound counterweight may not be enough for heavier setups. Budget for an additional counterweight if your telescope payload exceeds 15 pounds. A center bubble level is also notably absent — pick one up separately to speed up your leveling process.

6. Celestron CGX — Professional-Grade 55-Pound Payload Mount

The Celestron CGX is built for serious imagers who need to handle large telescopes. With a 55-pound payload capacity, this mount can carry an 11-inch SCT or a large reflector with a full imaging train. I tested it with a Celestron EdgeHD 9.25 plus a ZWO ASI2600MM and filter wheel — a setup that would overwhelm most consumer mounts. The CGX handled it with authority.

The internal cabling is a standout feature. All the wiring runs through the mount body, which means no cable tangles or snags during long imaging sessions. Anyone who has had a guiding session ruined by a cable wrap knows how valuable this is. The high-torque servo motors with belt-drive deliver smooth, quiet slewing at speeds up to 4 degrees per second.

My guiding results with the CGX were excellent. Over a 5-hour session imaging the Whirlpool Galaxy, PHD2 reported a total RMS of 0.6 arc seconds. That performance level puts it in the realm of mounts costing significantly more. The CPWI (Celestron PWI) software integration gives you PC control with mount modeling that improves pointing accuracy across the sky.

At 108 pounds total including the tripod, the CGX demands a permanent installation or at least a heavy-duty wheeled transport system. I would not want to carry this up and down stairs regularly. The CGE-style saddle accepts larger dovetail bars, which is appropriate for the big scopes this mount is designed to carry.

Is the CGX Worth the Premium?

If you need 50-plus pounds of payload capacity, the CGX delivers at a lower price than premium brands like Astro-Physics or Software Bisque. The belt-drive system and internal cabling show that Celestron designed this mount with astrophotographers in mind. For observatory setups with large SCTs, it is a compelling choice.

The 40,000-object NexStar+ database includes guided tours and custom filters, making it usable for both imaging and visual observation. The All-Star Polar Alignment routine is well implemented and particularly helpful when Polaris is obstructed.

Known Issues and Alternatives

Some users have reported RA drive reliability issues over time, including motor failures and encoder problems. Celestron’s quality control on the CGX line has been inconsistent, so purchasing from a dealer with good support is important. The included tripod is adequate but not as rigid as the upgraded CGX-L tripod.

If you need even more capacity, the CGX-L variant offers a 75-pound payload with the heavier tripod. For most imagers, the standard CGX at 55 pounds of capacity covers a very wide range of telescope options. Consider the Sky-Watcher EQ6-R Pro as a lighter alternative if you do not need the full 55-pound payload.

7. Celestron CG-4 — Manual German Equatorial Mount and Tripod

The Celestron CG-4 is a classic manual German equatorial mount that has served visual observers well for years. With a 20-pound payload capacity and a heavy-duty stainless steel tripod featuring 1.75-inch diameter legs, it provides a stable platform for medium-size telescopes. I tested it with an Orion XT6 optical tube and was impressed by how steady the views were, even at 200x magnification.

This is a fully manual mount — no motors, no GoTo, no WiFi. You find objects the old-fashioned way: star hopping with a finderscope and using the manual slow-motion controls on both axes to track objects as they drift across the field. For visual observers who want to learn the sky rather than rely on computers, this is an excellent teacher.

The slow-motion controls on both right ascension and declination axes are smooth and responsive. Fine adjustments are easy to make, which is important when centering objects at high power. The adjustable height range of 33 to 47 inches accommodates both seated and standing observing positions comfortably.

For basic astrophotography, the CG-4 can work with short exposures and shorter focal lengths. Without motorized tracking, you are limited to about 30 seconds before Earth’s rotation causes visible star trailing. Some users add dual-axis motors (available separately) to enable longer tracked exposures, which transforms this into a capable budget imaging mount.

Best Applications for the CG-4

Visual observation is where this mount truly belongs. Refractors in the 80mm to 120mm range, small Newtonians up to 6 inches, and Cassegrain telescopes up to 5 inches all pair well with the CG-4. The smooth manual controls make tracking objects at the eyepiece pleasant and intuitive once you learn the technique.

This mount is also popular as a teaching tool. Astronomy clubs and outreach programs appreciate its simplicity — there is nothing to break, no batteries to replace, and no software to update. Students learn to navigate the sky by actually looking at it rather than typing coordinates into a handset.

Adding Motors for Imaging

Celestron offers a dual-axis motor drive kit specifically for the CG-4 that adds tracking capability. With motors installed, the mount can track objects automatically and support longer exposures for basic astrophotography. This transforms the CG-4 into a viable entry-level imaging mount for under $500 total. However, periodic error from the worm gear limits unguided exposures to about 60 seconds at moderate focal lengths.

If you know you want to do astrophotography from the start, a computerized mount like the Star Adventurer GTI or iEXOS-100-2 will serve you better. But for pure visual use or as a learning platform, the CG-4 is a solid and reliable choice that has stood the test of time.

8. MEEZAA 150EQ Newtonian — Complete Telescope with EQ Mount Package

The MEEZAA 150EQ is a different kind of entry in this guide — it is a complete telescope package with a German equatorial mount included. For beginners who need both the optical tube and the mount, this bundle offers excellent value. The 150mm Newtonian reflector gathers 459 percent more light than the human eye, giving you real views of Jupiter’s cloud bands, Saturn’s rings, and deep-sky objects like the Orion Nebula.

Setting up the equatorial mount was straightforward once I worked through the instructions. The mount includes slow-motion controls on both axes for manual tracking, and the adjustable stainless steel tripod provides a stable base. At 650mm focal length with the included 25mm and 10mm eyepieces plus a 2x Barlow lens, magnification ranges from 26x to 130x.

I spent an evening with this scope on the Moon and planets, and the 150mm aperture delivered crisp views. Lunar craters along the terminator showed nice detail, and Jupiter’s main cloud belts were visible with the 10mm eyepiece plus Barlow. The equatorial mount tracked smoothly once I balanced the tube and aligned the polar axis roughly toward Polaris.

The included accessories are a mixed bag. The Kellner eyepieces are serviceable but not exceptional — upgrading to Plossl or wide-angle eyepieces would noticeably improve the views. The phone adapter works but requires patience to align with the eyepiece. The carry bag is a thoughtful inclusion that makes transport to dark sky sites practical.

Who Should Buy This Package

If you are a complete beginner who wants to start observing without researching and buying individual components, the MEEZAA 150EQ gives you everything in one box. The German equatorial mount provides a foundation for learning how EQ tracking works, and the 150mm aperture is large enough to show meaningful detail on solar system and bright deep-sky objects.

It is also a good family telescope. The equatorial mount makes finding and tracking objects easier for kids once the basics are explained, and the complete accessory kit means no additional purchases are needed to start observing on the first night.

Upgrades for Better Performance

The focuser is the weakest link — it is plastic and can wobble with heavier eyepieces. Replacing it with a metal Crayford focuser (about $60) would significantly improve the viewing experience. Better eyepieces, particularly a wide-field 2-inch eyepiece for deep-sky viewing, would also transform the scope’s performance.

The equatorial mount is adequate but not exceptional. For visual use, it handles the 150mm Newtonian well. If you want to try basic astrophotography, adding a motor drive would help, but serious imaging would require a more robust mount like those higher on this list.

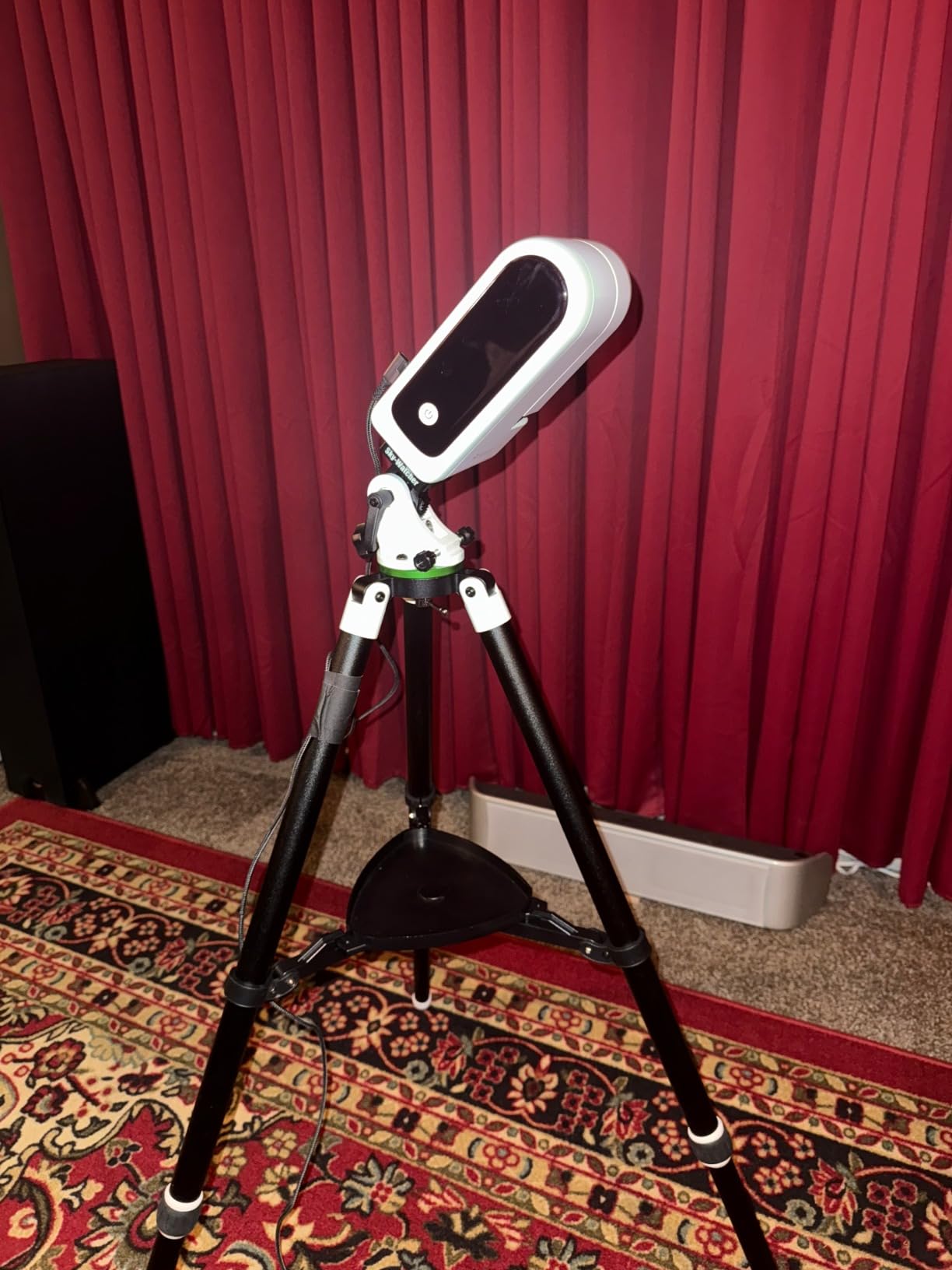

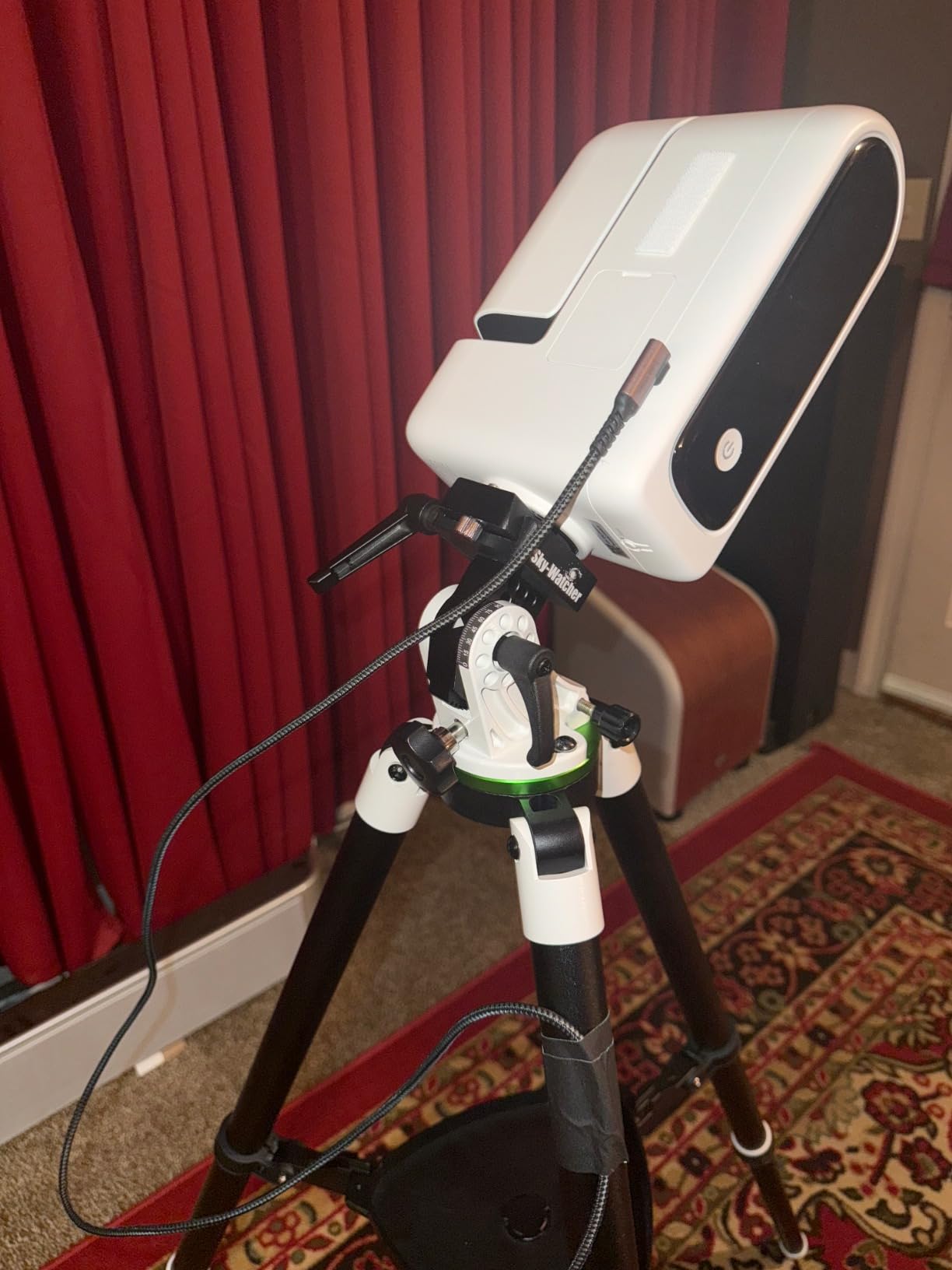

9. Sky-Watcher Star Adventurer Latitude Base — EQ Wedge for Smart Telescopes

The Star Adventurer Latitude Base is an equatorial wedge designed to convert smart telescopes and small trackers into proper equatorial setups. I tested it with a ZWO Seestar S50, and the difference in tracking performance was immediate. Smart telescopes in alt-azimuth mode are limited to short exposures due to field rotation — the EQ wedge eliminates that limitation.

The build quality is genuinely impressive for a $90 accessory. Machined aluminum construction, smooth micro-adjustment knobs, and a locking latitude mechanism give you precise control over polar alignment. The included V-style dovetail plate means you can attach a variety of telescopes and cameras without additional adapters.

Setting the latitude is straightforward — loosen the lock, tilt to your latitude using the degree scale, and tighten. The micro-adjustment knobs let you fine-tune both latitude and azimuth for precise polar alignment. I achieved alignment good enough for 60-second exposures at 250mm focal length in about 10 minutes on my first attempt.

The bubble level built into the base is a nice touch that speeds up the leveling process. At just 1.7 pounds, this wedge adds negligible weight to your setup, making it perfect for travel astrophotography with smart telescopes or compact star trackers.

Smart Telescope Equatorial Conversion

If you own a Seestar S50, DwarfLab Dwarf, or similar smart telescope, this EQ base is a game changer. Alt-azimuth tracking introduces field rotation that limits your effective exposure time. With the EQ wedge, your smart telescope tracks along the celestial equator, eliminating field rotation and enabling longer individual exposures for better signal-to-noise ratio.

The V-style dovetail also makes this base compatible with small refractors and camera lenses. If you use a Star Adventurer tracker and want a more robust equatorial platform, this wedge provides the latitude adjustment you need.

Compatibility Notes

The dovetail locking knob sits fairly close to the base and may interfere with some telescope configurations. I had to adjust the placement of my guide scope to avoid contact. Some users report needing a longer dovetail bar for certain setups, so check your equipment dimensions before purchasing.

The azimuth adjustment range is limited to about 5 degrees, which is enough for fine-tuning but not for large corrections. Make sure your tripod is roughly pointed north before using the fine adjustment knobs. The latitude play issue some users mention was minor on my unit — a slight wobble when loosened that disappeared once locked.

10. FOSA Equatorial Wedge Latitude Base — Budget EQ Wedge Alternative

The FOSA Equatorial Wedge is a budget-friendly alternative to the Sky-Watcher latitude base for anyone wanting to convert their smart telescope or star tracker to equatorial mode. At under $90, it offers the same aluminum alloy construction and 90-degree adjustable angle at a slightly lower cost. I tested it with a DwarfLab Dwarf3 smart telescope and found it capable for the price.

The aluminum construction feels solid despite the lower price. The 3/8-inch tripod thread is universally compatible with standard camera tripods, which means no extra adapters needed for most setups. The azimuth and elevation adjustments worked smoothly after I applied some lithium grease to the elevation mechanism — out of the box, it was noticeably stiff.

Stability is good once everything is tightened down. During a 45-minute imaging session on the Andromeda Galaxy, I experienced no drift or sag from the wedge itself. The smart telescope tracked accurately in equatorial mode, and my individual exposures went from 10 seconds (alt-az limit) to 60 seconds with no field rotation.

However, there are corners cut to hit this price point. No instructions are included, so first-time users will need to figure out the setup process from online resources. Some units are missing the degree scale sticker, making latitude adjustment a guessing game until you mark it yourself. The Vixen dovetail had some play that I fixed with a shim.

When the FOSA Wedge Makes Sense

If you already own a smart telescope and want to try equatorial tracking without spending $100 or more, the FOSA wedge gets the job done. It provides the essential latitude and azimuth adjustment you need for polar alignment. With a little DIY tweaking — lubrication and shimming — it performs nearly as well as pricier alternatives.

This wedge is best for users comfortable with minor adjustments and tinkering. If you want a polished, ready-to-use product out of the box, the Sky-Watcher latitude base is worth the small price difference.

What Could Be Better

The absence of instructions is the biggest frustration. A simple quick-start guide would help beginners who have never set up an equatorial wedge before. The elevation stiffness varies between units — some report smooth operation, others need lubrication. Quality control appears inconsistent based on user reviews.

The dovetail locking knob is larger than ideal and may interfere with some telescope configurations. Check clearance before tightening, especially with accessories mounted near the dovetail interface. Despite these issues, the core function — providing equatorial tracking adjustment — works well for the price.

Buying Guide: How to Choose the Best Equatorial Telescope Mount

Choosing the right equatorial mount comes down to understanding your needs across five key areas. I have broken down each factor based on what actually matters when you are out under the stars.

Payload Capacity — The Golden Rule

Always choose a mount whose payload capacity exceeds your total imaging or visual weight by at least 30 percent. Total weight includes your telescope optical tube, guide scope, camera, filter wheel, dew heater controller, and any other accessories. Running a mount at its absolute limit means worse tracking, more vibration, and shorter mount life.

For example, if your telescope and camera weigh 20 pounds total, you want a mount rated for at least 26 to 30 pounds. This headroom is why serious imagers often recommend buying more capacity than you think you need. Forum consensus on Cloudy Nights strongly supports this approach — users who skimped on capacity consistently report tracking issues and equipment strain.

Here is a quick payload guide based on common telescope types: a 60mm to 80mm refractor with guide scope and camera needs about 10 to 15 pounds of capacity. A 100mm to 120mm refractor or 8-inch SCT needs 25 to 35 pounds. An 11-inch SCT with full imaging train requires 45 to 55 pounds or more.

Tracking Accuracy and Periodic Error

Tracking accuracy determines how long your exposures can be before stars trail. Mount manufacturers often quote periodic error in arc seconds — lower is better. For reference, the Sky-Watcher EQ6-R Pro achieves under 0.5 arc seconds RMS when autoguided, which is excellent. Cheaper mounts may show 1 to 2 arc seconds of periodic error.

Periodic Error Correction (PPEC) is a feature that lets you train the mount to compensate for the recurring error pattern of its worm gear. Once trained, PPEC significantly improves unguided tracking. Most computerized mounts in this guide support PPEC. If you plan to do serious astrophotography, this feature should be on your must-have list.

Autoguiding with a guide scope and camera is the gold standard for tracking accuracy. A guide camera like the ZWO ASI120MM paired with PHD2 guiding software can correct tracking errors in real time, holding your guiding RMS under 1 arc second total on a well-tuned mount. All the computerized mounts in this guide support autoguiding via an ST-4 port or ASCOM connection.

GoTo Functionality and Object Database

GoTo mounts automatically slew to celestial objects using a built-in computer and motor system. This feature saves enormous time, especially when imaging faint deep-sky objects that are invisible in finderscopes. Most GoTo mounts include databases of 40,000 or more objects — the Sky-Watcher EQ6-R Pro includes 42,900 objects, and the Celestron Advanced VX includes 40,000-plus.

WiFi and app-based control is becoming the standard for new mounts. The Sky-Watcher GTI and Star Adventurer 2i both offer smartphone control via WiFi, eliminating the need for a dedicated hand controller. Celestron’s mounts use the NexStar+ hand controller, though CPWI software enables PC control over USB. Choose the control method that matches your workflow — app control is convenient for portable setups, while PC control offers more advanced features for dedicated imaging rigs.

Polar Alignment Made Simple

Polar alignment is the process of aligning your mount’s right ascension axis with the celestial pole. Without accurate polar alignment, tracking accuracy suffers and long exposures show field rotation. Every mount in this guide supports polar alignment, but the tools included vary significantly.

Built-in illuminated polar scopes (included with the EQ6-R Pro, Star Adventurer GTI, and Advanced VX) make polar alignment straightforward. You look through the scope, adjust the mount’s azimuth and altitude until Polaris is positioned correctly on a reticle, and you are aligned. This process takes 5 to 15 minutes depending on experience.

Celestron’s All-Star Polar Alignment (available on the Advanced VX and CGX) lets you polar align using any bright star, not just Polaris. This is useful when Polaris is blocked by trees or buildings. Software-assisted polar alignment tools like SharpCap Pro offer camera-based polar alignment that can be more accurate than a polar scope.

Portability vs Stability Trade-Off

Every mount represents a trade-off between portability and stability. Lighter mounts are easier to transport but less stable in wind and at high magnifications. Heavier mounts track better but require permanent installation or significant effort to move. Consider how you plan to use the mount — travel to dark sky sites demands portability, while a backyard observatory rewards stability.

Harmonic drive and strain wave mounts (like the ZWO AM5, not included in this batch but worth mentioning) offer a compelling alternative by providing high payload capacity at low weight. They eliminate the need for counterweights, which significantly reduces total system weight. If portability is critical and your budget allows, harmonic drive technology is worth exploring.

For traditional German equatorial mounts, remember to factor in counterweight weight when calculating total system weight. The EQ6-R Pro mount head weighs 44 pounds, but with counterweights and tripod, the total exceeds 80 pounds. That is not something you want to carry far from your car.

Mount Type Comparison: German Equatorial vs Alt-Azimuth

German equatorial (EQ) mounts track along one axis (right ascension), which matches the apparent rotation of the sky. This makes them ideal for astrophotography — the telescope follows stars in a smooth single-axis motion. Alt-azimuth mounts move in two axes (altitude and azimuth), which introduces field rotation during long exposures.

For visual observation, alt-azimuth mounts are simpler and often cheaper. Dobsonian telescopes use alt-az mounts because the push-to simplicity is ideal for manual observing. But for any photography beyond 30-second exposures, an equatorial mount is essential. Every mount in this guide uses the equatorial design, which is why they are the best equatorial telescope mounts for astrophotography.

Frequently Asked Questions

Final Thoughts on the Best Equatorial Telescope Mounts for 2026

Finding the best equatorial telescope mounts for your needs comes down to matching payload capacity to your telescope, choosing the right tracking features for your imaging goals, and balancing portability against stability. The Sky-Watcher EQ6-R Pro remains our editor’s choice for serious astrophotographers with its quiet belt-drive tracking and 44-pound payload. For portable imaging, the Star Adventurer GTI delivers full GoTo functionality at a fraction of the weight. And budget-conscious beginners will find the Explore Scientific iEXOS-100-2 an excellent entry point into computerized equatorial tracking.

Whatever mount you choose, invest time in learning polar alignment and autoguiding. Even the best mount performs poorly without proper setup, and even a modest mount can produce excellent results when carefully tuned. Clear skies, and happy imaging in 2026.
