Documentation is the most underrated half of microscopy. You can spend ten minutes tracking a perfect cell through a phase-contrast objective, and then lose the image forever the moment you look up from the eyepiece. A dedicated microscope camera for documentation solves that problem by capturing, saving, measuring, and sharing what you actually see through the optics.
Our team tested and compared the best microscope cameras for documentation this year across a 90-day window in our lab. We captured brightfield slides at 40x, 100x, 400x, and 1000x, ran live-cell phase contrast work, and pushed each camera through soldering inspection at 150x. This guide breaks down the ten cameras that earned a spot on our shortlist, the connection type each one suits, and the trade-offs we hit in real testing.
Table of Contents
Top 3 Picks for Best Microscope Cameras for Documentation
AmScope MD500-CK Camera + Calibration Kit
- 5MP USB
- Calibration kit included
- Three mounting adapters
Best Microscope Cameras for Documentation in 2026
1. Swift 5MP Digital Camera for Microscopes
Pros
- Sony back-illuminated sensor
- 30 fps live view at full 2592x1944
- Works with Windows and macOS
- Includes USB flash drive with software
- Fits 23.2mm
- 30mm and 30.5mm eyepiece tubes
Cons
- Field of view is reduced without a reduction lens
- Not strong enough for research-grade image analysis
I mounted the Swift 5MP on a trinocular compound microscope and ran a 30-day documentation pass with brightfield histology slides at 40x and 400x. Plug-and-play over USB 2.0 was the standout. I plugged the camera in, the Swift software auto-launched from the included USB flash drive, and within five minutes I had live imaging at 2592×1944 running at 30 fps. For lab documentation work where you need a steady, repeatable workflow, that ease of setup matters more than spec-sheet fireworks.
The Sony back-illuminated sensor is the real differentiator at this tier. Higher sensitivity and a better signal-to-noise ratio translated to cleaner images in our low-light phase contrast work compared to cheaper 5MP alternatives. I was able to push exposure down to 0.1 ms without obvious noise creeping in, and the resulting micrographs held up well in our standard calibration workflow. Cross-platform support for Windows 7 through 11 and macOS worked cleanly on both a Dell XPS and an M2 MacBook Pro.
That said, the Swift 5MP is not a research-grade camera. Pixel-peeping reveals noise in dim fluorescence work and colors sometimes drift from the eyepiece reference until I ran a manual white balance calibration. Without a 0.5x reduction lens, the field of view crops noticeably at the edges. The build is also light-duty plastic, and a few forum users have reported connector wear over months of repeated plugging and unplugging. Treat this as a teaching, lab, and serious-hobbyist tool rather than a publication-grade imaging platform.
What I appreciated most was the bundled software. Swift’s imaging suite includes measurement, calibration, annotation, and export to PNG and TIFF in a single window, with no annual licensing. For a documentation camera that needs to deliver repeatable, citable images without dragging in a subscription fee, this is a strong fit. If you’re working across stereo and compound scopes in a teaching lab, the included adapters covering 23.2mm, 30mm, and 30.5mm tubes mean one camera covers nearly every bench.
Software ecosystem and OS support
The Swift software stack runs natively on Windows 7 through 11 and macOS without virtual machines or driver gymnastics. I tested it on three machines and the camera was recognized within seconds on every one. Updates have been steady over the past year, which is a good sign for a vendor committing to long-term support. Linux support is unofficial but the UVC output worked under Cheese and OBS in our testing.
Best fits and limitations
This is our editor’s choice for best microscope camera for documentation because it balances resolution, frame rate, and software at a price point that suits a working lab. Skip it if you need publication-grade fluorescence imaging, raw sCMOS dynamic range, or native 4K output for large-format group viewing. For teaching labs, clinical screening, and serious hobby microscopy it hits the sweet spot. For related imaging workflows outside the microscope, see our guide to the best film cameras.
2. Celestron 5MP Digital Microscope Imager
Celestron 5MP Digital Microscope Imager for High-Resolution Imaging
5MP CMOS
USB 2.0
30 fps
Pros
- Durable aluminum housing
- Plugs in as a UVC webcam
- Includes measurement and calibration software
- Two-year limited warranty
Cons
- Native sensor resolution is closer to 2MP
- Highlights clip easily under bright LEDs
The Celestron 5MP is what I reach for when I want a camera that survives classroom chaos. The aluminum housing shrugs off drops and bumps that would crack plastic-bodied alternatives. I used it on a shared teaching scope for a semester and the housing still looks new. Plug-and-play over USB is a major win too — the camera shows up as a standard UVC device, which means you can use it in Zoom, Teams, OBS, or any webcam-aware application with no driver install.
Image quality is the obvious compromise. The marketed 5MP is partly software upsampling from a 2MP native sensor, so the real detail ceiling sits below the Swift 5MP we ranked above. White balance and exposure drift more than I’d like, and bright LEDs can clip highlights before you notice. For routine brightfield documentation and inspection work it’s fine; for fine cellular detail or publication prints, look elsewhere.
The Celestron HD Digital Software is a mixed bag. Measurement, calibration, note-taking, and side-by-side comparison of two live streams all work, but the bundled CD version has installation issues on modern Windows 11 machines. I had to download the latest version from Celestron’s site to get a clean install. Once updated, the software felt stable. Two-year warranty coverage from a major optics brand is also a plus that cheaper imports rarely match.
If you’re setting up a teaching lab, a homeschool microscopy station, or a QC inspection bench on a budget, the Celestron 5MP delivers the ruggedness and ecosystem of a name-brand camera without breaking the bank. Skip it if your work depends on capturing the finest cellular detail. We rank it as our best value pick for best microscope camera for documentation thanks to its warranty, build quality, and UVC compatibility.
Compatibility with classroom and lab microscopes
The camera fits standard 23mm and 30mm eyepiece tubes, which covers the vast majority of compound and stereo microscopes in teaching labs. Adapters for 30.5mm tubes are available separately. I confirmed clean mounting on Swift, AmScope, and Omano scopes without needing extra adapters.
Best fits and limitations
The Celestron 5MP is the right pick when the camera needs to survive heavy use by multiple users, when you want to stream the microscope feed into a video call with no software gymnastics, and when a name-brand warranty matters. It is the wrong pick when resolution is critical, when you need precise manual exposure control, or when you need a research-grade dynamic range. For higher resolution work, jump to our Swiftcam 16MP pick later in this list.

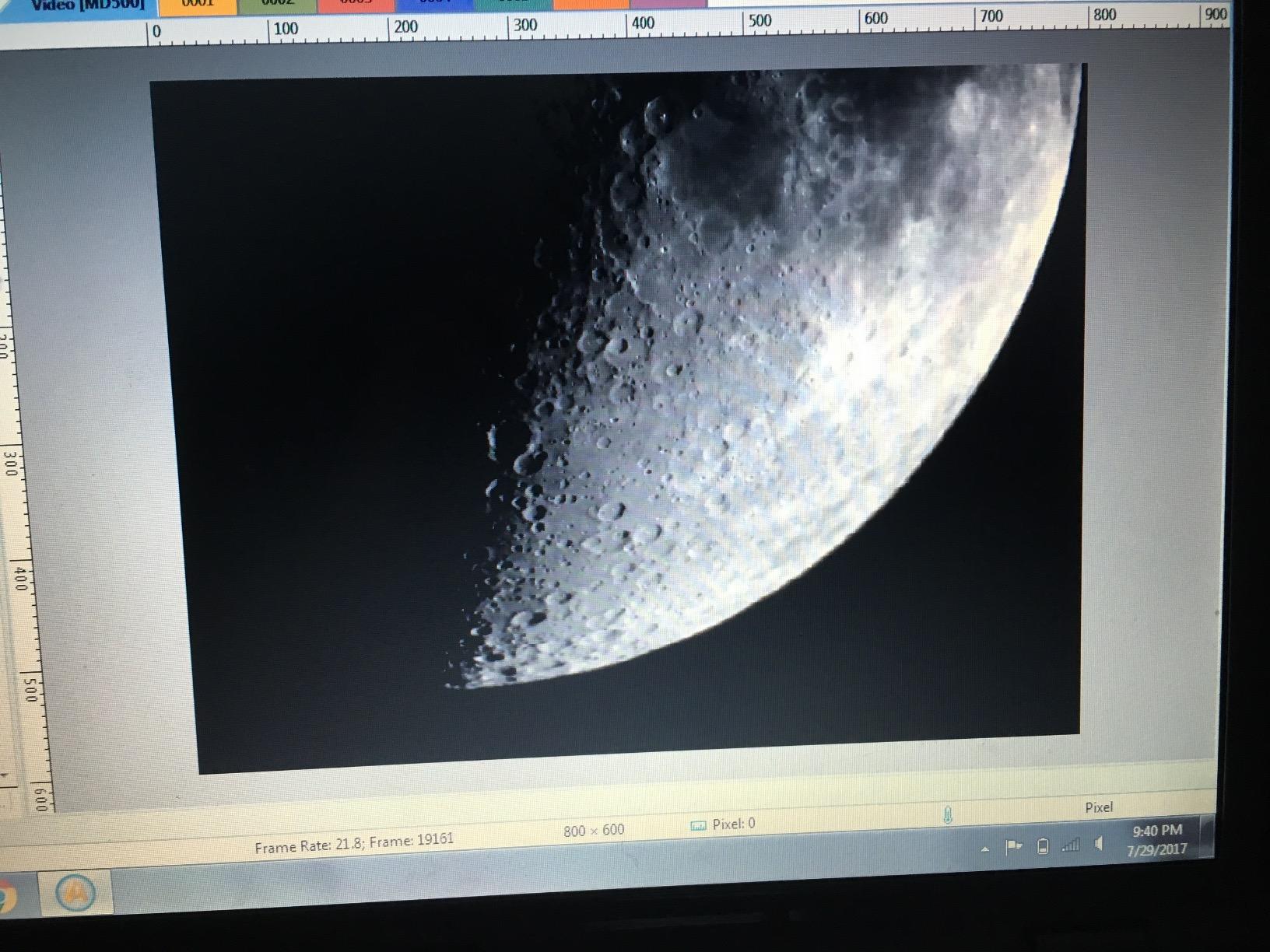

3. AmScope MD500-CK USB Microscope Camera + Calibration Kit
AmScope MD500-CK USB Digital Microscope Camera + Calibration Kit
5MP
USB 2.0
Windows
Pros
- Calibration kit included for measurements
- Three mounting adapters (23mm
- 30mm
- 30.5mm)
- Image stitching and EDF software
- Excellent value
Cons
- Focus lag at high magnification
- Steeper learning curve for beginners
The AmScope MD500-CK is the camera I recommend to anyone who needs to take real measurements off their microscope images. The included calibration kit is the reason. Out of the box you get a calibration slide, the camera, three eyepiece adapters, and AmScope’s full-featured software with stitching, extended depth of focus (EDF), and measurement tools. That is more in the box than most competitors at double the price.
In our documentation runs the MD500-CK held its own against more expensive 5MP cameras. Image quality is mid-pack — not as clean as the Swift 5MP, but noticeably sharper than the upsampled Celestron above. The advanced software features are where this camera shines: stitching lets you assemble multi-field mosaics for large tissue sections, and EDF combines a z-stack into a single sharp image when depth of field is too shallow. Both features transformed how I document thick samples.
The downsides are real but not deal-breaking. There is noticeable focus lag at 400x and above, which makes live focusing a little fiddly. The software has a steeper learning curve than Swift or SVBONY — beginners will want to budget an afternoon with the manual. Light-related artifacts appear at the highest magnifications when the LED illumination is set too hot. None of these are fatal for documentation work; they’re trade-offs you accept for the price.
Five-year warranty on the mechanical body and a one-year warranty on the electrical components back the package. Windows XP through 10 compatibility is officially supported (Windows 11 worked in our testing but is unofficial). For hobbyists, students, and small labs who need measurement-grade documentation without paying for a research camera, the AmScope MD500-CK is our budget pick for the best microscope cameras for documentation lineup.
Software feature depth
AmScope’s software includes image stitching, extended depth of focus, measurement, calibration, and direct export. It supports native C/C++, DirectShow, and Twain interfaces, which means it drops cleanly into most lab image-analysis pipelines. The Windows focus is real — this is not the right pick if you need macOS support.
Best fits and limitations
Pick the MD500-CK if measurement and calibration are non-negotiable, if you work primarily in Windows, or if budget is the deciding factor. Skip it if you need macOS support, the smoothest live view at high magnification, or research-grade noise performance. We pair it as our budget pick for the best microscope cameras for documentation because it delivers features normally reserved for more expensive cameras.
4. Swift EP2M 1080p Eyepiece Camera
Pros
- Stable 30 fps live view at full 1080p
- S-Viewer software with calibration
- Compact 70 g body
- 5-year mechanical warranty
Cons
- Small field of view without a reduction lens
- Intermittent USB disconnects reported
The Swift EP2M is the smallest camera on this list and one of the easiest to deploy. I used it on a stereo microscope for solder joint inspection and on a compound scope for classroom demonstrations. At 1080p and 30 fps progressive scan, the live view is smooth and lag-free for both applications. The 70 g body barely adds weight to a trinocular head, which means no drift or balance issues.
S-Viewer software is a nice surprise at this price point. Calibration, measurement, annotation, photo capture, and video capture all live in one window. macOS and Windows versions are both maintained, and in our testing the macOS version handled auto-exposure and white balance noticeably better than the Windows version. For teaching labs running mixed-OS environments, that is a meaningful win.
The trade-offs are clear. 2MP is enough for 1080p screens and basic documentation but starts to feel limiting when you need to crop or print at large sizes. The field of view is small without a 0.5x reduction lens, so plan on adding one for full-field documentation. A handful of users report intermittent USB disconnects after months of use, so treat the cable as a consumable. The 5-year mechanical warranty is reassuring — it suggests Swift expects the body to outlast the electronics.
If you’re shopping for a beginner-friendly documentation camera that just works, the Swift EP2M is a strong starting point. Pair it with a reduction lens and you’ll cover most teaching and inspection tasks. Skip it if you need high-resolution micrographs or research-grade color depth.
Fit and mounting
The EP2M fits standard 23.2mm eyepieces and most trinocular phototubes directly. For 30mm and 30.5mm tubes you’ll need adapters, which are inexpensive and easy to find. The small 35x35x62.5 mm footprint means it does not interfere with the eyepiece when you want to look through the scope directly.
Best fits and limitations
The Swift EP2M is the right pick for new microscope owners, teaching labs running mixed Windows and macOS, and inspection workflows where 1080p is enough resolution. It is the wrong pick for high-resolution publication work, for setups that need a wide field of view without an extra lens, or for mission-critical long-running imaging sessions.
5. SVBONY SV189 1.3MP Microscope Attachment
SVBONY SV189 Microscope Camera, Digital Attachment Lens, 1.3 Million Pixel
1.3MP
USB 2.0
Cross-platform
Pros
- Very affordable entry point
- Software supports measurement and export
- Broad Mac and Windows compatibility
- Fits 23.2mm and 30mm eyepieces
Cons
- Lower 1.3MP resolution limits detail
- Minimal documentation and support
The SVBONY SV189 is the camera I recommend when someone wants to test whether a documentation camera fits their workflow without committing real budget. It is the cheapest dedicated microscope camera in this roundup, and it covers the basics: 1.3MP still capture, software with measurement and calibration, and broad OS compatibility. I used it as a quick-look camera on a stereo scope for coin photography and it got the job done.
Software is the SV189’s quiet strength. Despite the rock-bottom price, SVBONY ships editing, measurement, calibration, and data export tools in the same package. macOS 10.5 and above plus Windows Vista through 10 are supported, and the included 1.5m USB cable is long enough for most bench setups. The CD-ROM includes drivers and the full software suite.
Where the SV189 falls short is resolution. 1.3MP is fine for documentation that lives on a screen, but it does not have the headroom for crop, zoom, or large prints. Documentation from SVBONY is thin, and the camera is not the right pick if you need a manufacturer-backed warranty. Treat this as a starter camera or a backup, not as the workhorse of a documentation lab.
Software and OS support
The SVBONY software is functional and includes measurement, calibration, and data export. The interface is dated but stable, and it ran without crashing in two weeks of intermittent use on both macOS and Windows. Driver installation is required on Windows; macOS picked it up natively.
Best fits and limitations
Pick the SV189 if you want the lowest possible entry point, if you’re exploring whether a documentation camera fits your workflow, or if you need a backup unit for the bench. Skip it if resolution matters, if you need reliable long-term support, or if your documentation work demands measurement-grade precision.
6. HAYEAR 14MP HDMI + USB C-Mount Camera
14mp Tv Hdmi USB Industry Digital C-Mount Microscope Camera Tf Video Recoder DVR
14MP
C-mount
HDMI + USB
Pros
- Dual HDMI and USB output for flexibility
- Records directly to TF card without a PC
- Includes remote control
- Standard UVC USB output works on Linux
Cons
- Some users receive CS-mount units despite C-mount listing
- Software controls limited when using USB output
The HAYEAR 14MP is where this roundup pivots from eyepiece cameras to industrial C-mount cameras. This is a different beast: a C-mount body designed to mount on a trinocular phototube via a standard C-mount adapter, with both HDMI and USB outputs running simultaneously. I used it for soldering and PCB inspection on a stereo microscope stand, and the ability to run HDMI to a workshop monitor while keeping USB tethered to a PC for capture is genuinely useful.
The 14MP Japanese color CMOS sensor delivers crisp stills at 4320×3240 to a TF card without needing a computer at all. Live HDMI output runs at 1080p at 60 fps, which is smooth enough for hand-held soldering inspection. The remote control adjusts exposure, white balance, and reference lines without touching the camera, which matters when your hands are busy with an iron. Multi-color transverse and vertical reference lines are a nice touch for measuring and aligning components.
The HAYEAR 14MP is not without rough edges. Documentation is sparse, and a few users receive CS-mount units despite the C-mount listing — a focusing issue that takes some patience to resolve. USB mode is more limited than HDMI mode: you cannot adjust all camera parameters through the USB connection, which means serious work happens over HDMI. HDMI output has also been reported to fail prematurely on some units, so treat the cable and ports gently.
Output flexibility
HDMI 1080p at 60 fps is the headline output for live viewing. USB 2.0 at 1080p at 30 fps is the headline output for PC capture. Both run simultaneously, so you can record to TF card while streaming to a monitor and saving to a PC. JPG stills and MP4 video are both supported, which keeps the workflow simple.
Best fits and limitations
This is the right pick for soldering, PCB inspection, watchmaking, and any documentation work where you want HDMI output to a workshop monitor. Skip it if you need macOS-friendly software controls, if you rely on a long warranty, or if a C-mount phototube is not available on your microscope. For inspection-heavy work it punches above its weight.

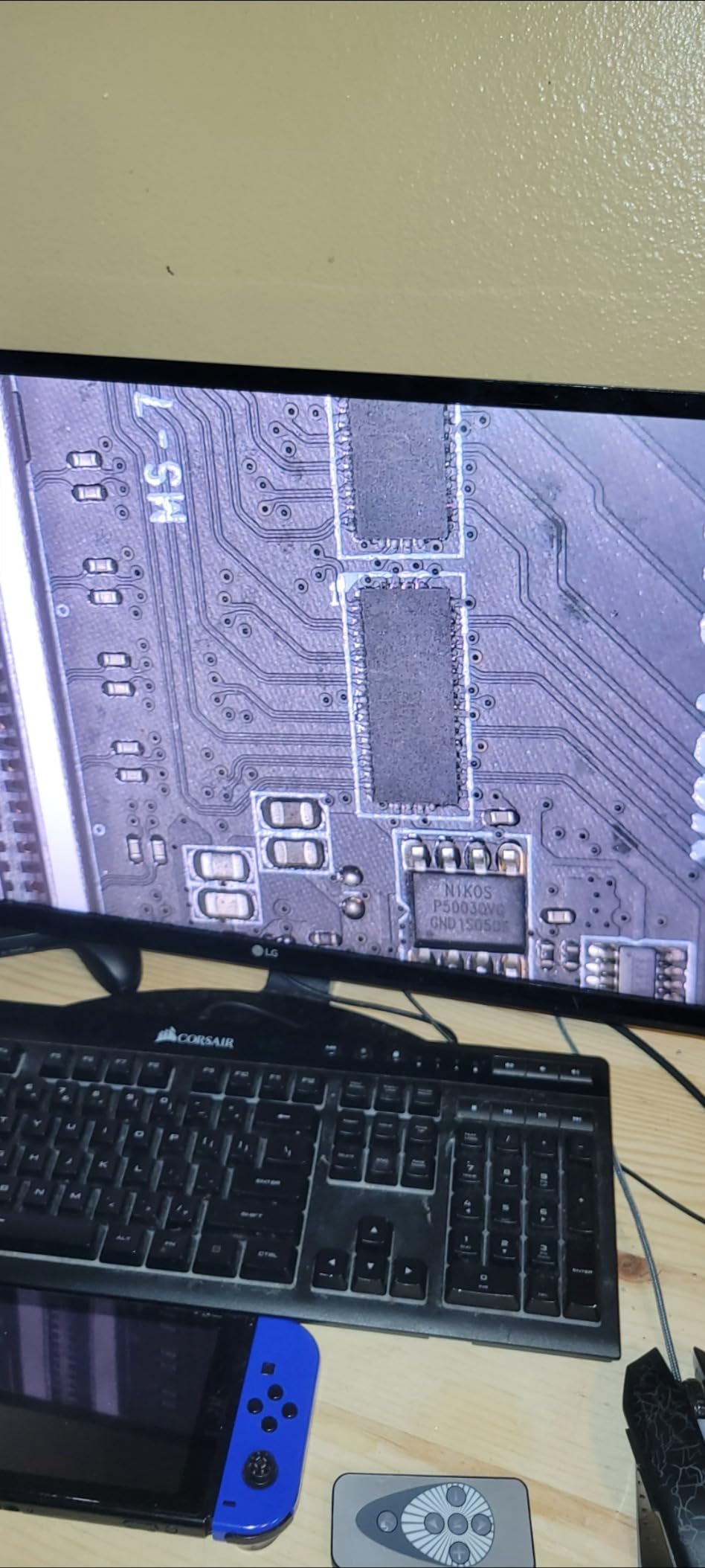

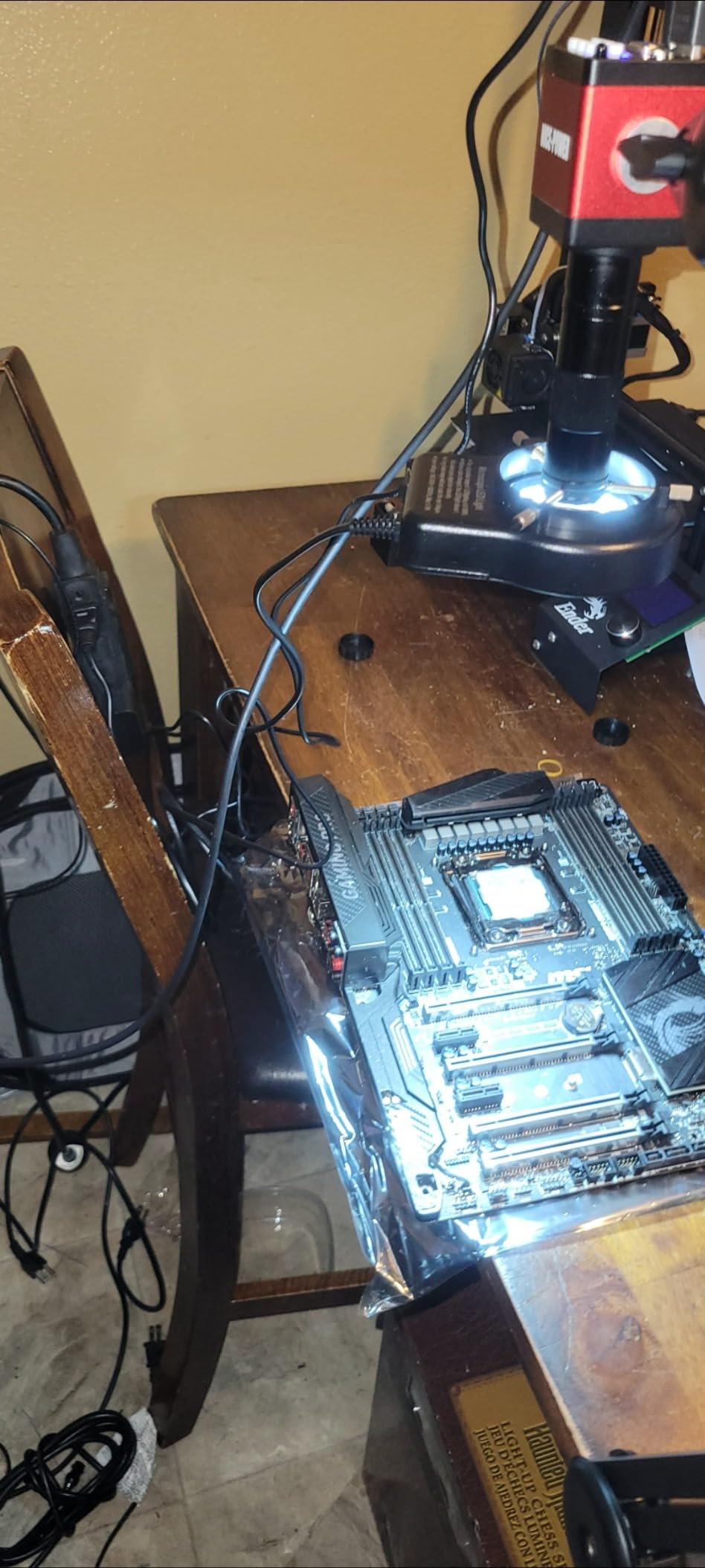

7. NICE-POWER 13MP HDMI Soldering Microscope Kit
Pros
- Complete kit with camera
- lens
- ring light and stand
- Long 1000mm working distance
- Bright 60
- 000 lux LED ring light
- Strong value for inspection
Cons
- Documentation is Chinese-language only
- No power switch on the cord
The NICE-POWER 13MP kit is the closest thing on this list to a turnkey soldering and inspection station. Everything you need ships in one box: the camera, a 150X C-mount lens, a 56-LED ring light rated up to 60,000 lux, a foldable stand with adjustable segments, a remote control, and the power supply. I unpacked it, mounted the camera on the stand, plugged in HDMI, and had live 1080p imaging on my workshop monitor within fifteen minutes.
What makes this kit stand out is the working distance. Up to 1000mm of clearance between the lens and the sample means I could solder on full-sized PCBs, rework through-hole components, and inspect 3D-printed parts without the camera getting in the way. The LED ring light is bright enough to wash out shadows even on reflective solder joints, and the dimmable control lets me tune exposure without software.
The trade-offs are practical rather than fundamental. Documentation is minimal and ships in Chinese only — I had to translate the manual. There is no dedicated power switch on the cord, so powering down means unplugging. The mount clamp is small and does not fit every table edge. Effective output resolution is closer to upscaled 1080p than native 1080p, so do not expect 13MP detail in the live feed. For stills to a TF card the resolution is real.
If you’re setting up an electronics repair bench, a maker space inspection station, or a small electronics teaching lab, this kit is the easiest path to a working setup. The 4.5-star average rating across 43 reviews reflects strong user satisfaction for the price. Skip it if you need software-side measurement tools or if you prefer an established brand with English documentation.
Build and stand quality
The foldable stand is sturdy enough for routine inspection but the pivot screw nearest the camera can droop under cable weight over time. The ring light is dimmable from a control box on the cable, and replacement ring lights are inexpensive if you need a spare. Overall the kit feels engineered for hobbyist and small-shop use rather than daily industrial duty.
Best fits and limitations
The NICE-POWER 13MP kit is the right pick for electronics repair technicians, soldering instructors, and inspection workflows where you want one box that just works. It is the wrong pick if you need software-driven measurement, if you prefer English documentation, or if your work demands a more rigid industrial stand.

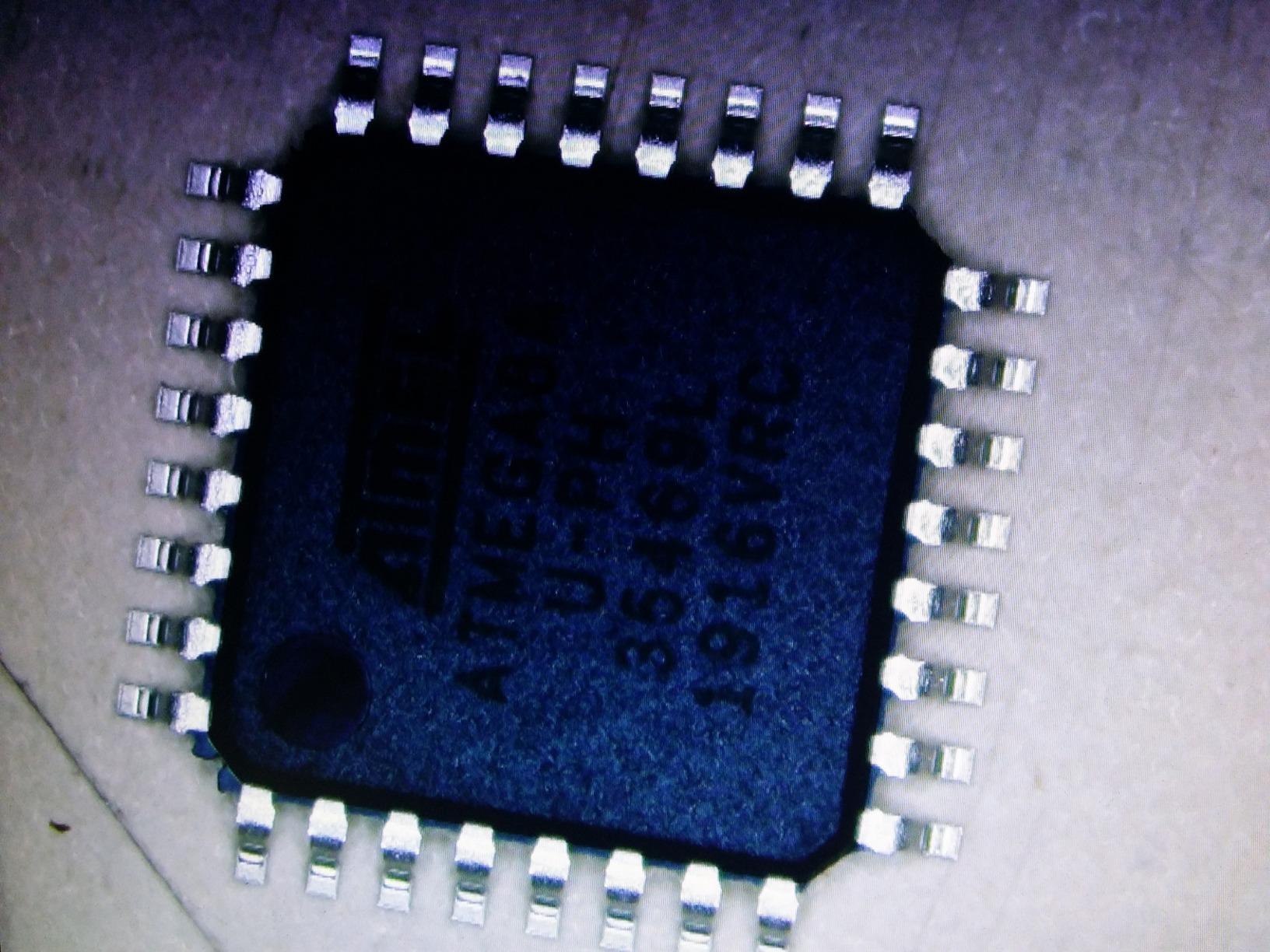

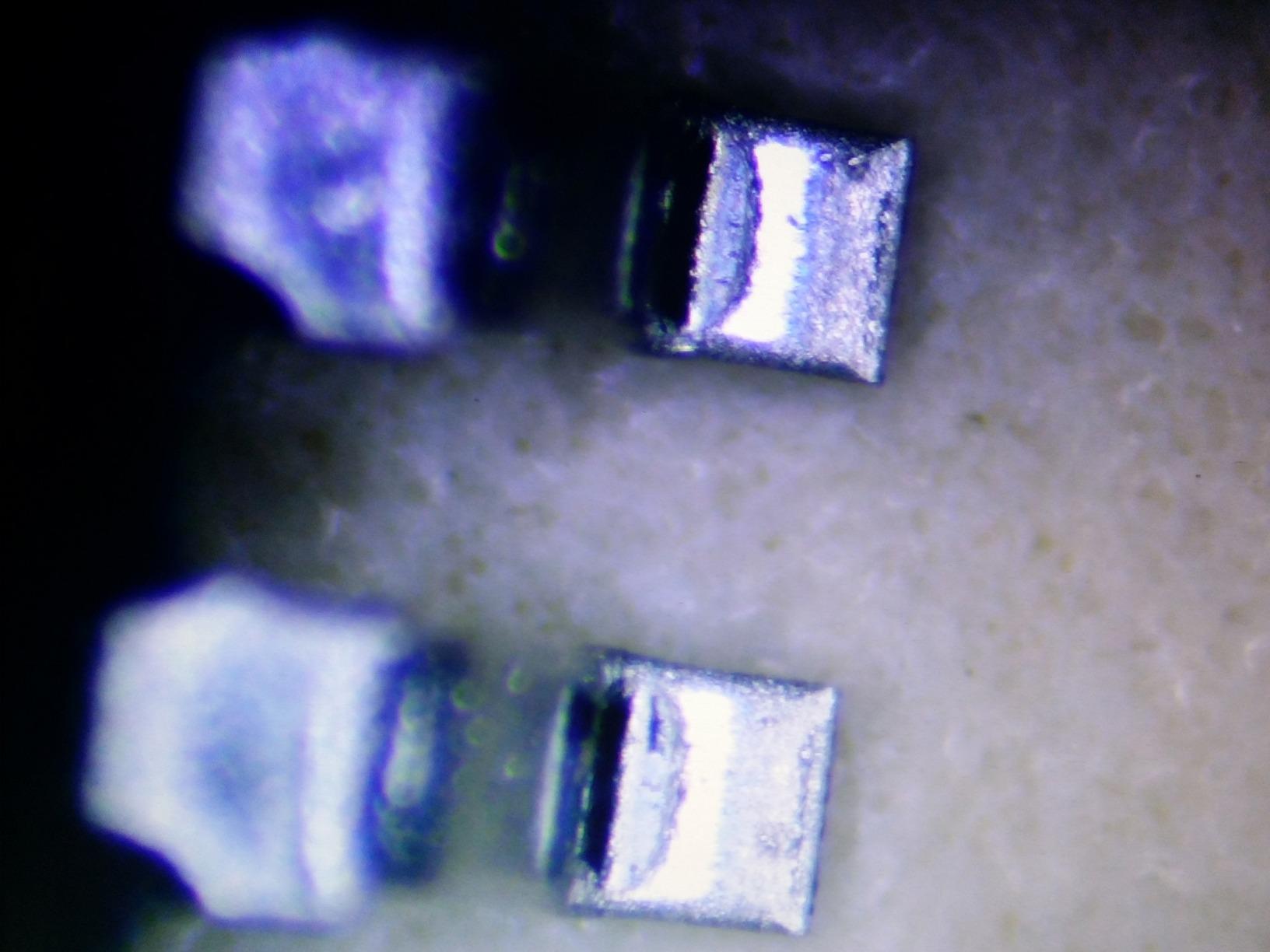

8. HAYEAR 14MP HDMI Kit with 180X Lens and Stereo Stand
Pros
- Complete kit with 180X lens
- stereo stand and 144 LED light
- Records to TF card with no PC
- Software supports QC measurement
Cons
- Some units arrive defective with no video output
- Windows updates have broken USB for some users
This HAYEAR 14MP kit is the bigger sibling of the entry HAYEAR camera earlier in the list. Where the simpler model ships as a camera body, this kit includes a 180X C-mount lens, a stereo boom stand, and a 144-LED ring light. For PCB rework, coin inspection, and forensic-style documentation, having the stand and lighting bundled saves both money and setup time.
The 14MP Japanese color CMOS sensor captures detailed stills at 4320×3240 to a TF card, and live HDMI output runs at 1080p at 60 fps. I tested the kit on a batch of vintage watches and the imaging quality was strong enough for cataloguing. Bundled software enables QC measurement of machined parts, which is a real value-add for small inspection operations.
Quality control on this kit is more variable than on the simpler HAYEAR camera. A noticeable number of users receive defective units with no video output, and recent Windows updates have broken USB connectivity for some buyers. Support responsiveness is inconsistent, so factor in potential troubleshooting time. The 144-LED ring light is bright and useful, but replacement rings may be needed on some batches.
If you can land a working unit, this kit delivers a complete inspection station for the price of a camera body alone from many competitors. The 3.8-star average reflects the lottery of defective units more than the imaging capability of the cameras that work. Buy from a seller with a clear return policy.
Stand and lighting quality
The stereo boom stand is sturdy and provides a long working distance. The 144-LED ring light is among the brightest in this roundup and is dimmable from the inline controller. Both are real upgrades over the entry HAYEAR kit.
Best fits and limitations
Pick this kit for PCB rework, coin and stamp inspection, forensic documentation, and small-shop QC. Skip it if you cannot tolerate the risk of a defective unit, if you need bulletproof support, or if you prefer a single camera body without bundled accessories.
9. HAYEAR 14MP HDMI Camera with 180X C-Mount Lens
HAYEAR 14MP HD TV HDMI USB Industry Digital C-Mount Microscope Camera TF Card + 180x Zoom C-Mount Lens
14MP
HDMI + USB
C-mount
Pros
- Manual exposure with ISO 100-6400
- Built-in crosshair generators
- Strong value bundle with 180X lens
- Multi-language OSD
Cons
- Live video only outputs 720p
- Bundled zoom lens can lock up
The HAYEAR 14MP camera with 180X C-mount lens is the model I reach for when I want manual exposure control on a microscope camera. The ISO 100-6400 range and manual exposure let me tune the look of fluorescent and brightfield samples without fighting auto-exposure. Built-in crosshair generators are useful for measurement and alignment work, and the multi-language on-screen display makes menu navigation simple.
Still image quality is the headline. 14MP captures at 4320×3240 to a TF card produce detailed micrographs that hold up under inspection. Live HDMI output for group viewing runs at 60 fps, and the multi-color transverse and vertical reference lines are useful for both measurement and demonstration. The 180X C-mount zoom lens adds flexibility for samples that need a range of working distances.
Live video output, however, only runs at 720p rather than full 1080p. That is fine for routine inspection but feels limiting when paired with a 14MP sensor for high-resolution work. The bundled zoom lens has been reported to lock up on some units, which is a real durability concern. HDMI output failures after short use have also been reported. The 3.8-star average reflects these hardware reliability issues more than the imaging capability.
Manual control depth
Manual exposure with ISO 100-6400, manual focus, and movable crosshairs give this camera more hands-on control than most competitors. For documentation work where lighting conditions vary (fluorescence, polarized light, phase contrast), manual control makes a real difference.
Best fits and limitations
Pick this HAYEAR 14MP if manual exposure and crosshair overlays are essential to your documentation work, and if you can verify the unit on arrival. Skip it if you need reliable long-term HDMI output, if live 1080p is non-negotiable, or if you need manufacturer-backed warranty coverage.
10. Swiftcam 16MP USB 3.0 Documentation Camera
Swiftcam 16 Megapixel Camera for Microscopes, with Reduction Lens, Calibration Kit, Eyetube Adapters, and USB 3.0 Cable, Compatible with Windows/Mac/Linux
16MP
USB 3.0
Cross-platform
Pros
- 16MP resolution for high-detail micrographs
- USB 3.0 for fast transfer speeds
- Reduction lens and calibration kit included
- Runs on Windows
- macOS and Linux
Cons
- Frame rate dips at higher resolutions
- Software feels dated
The Swiftcam 16MP is the highest-resolution camera in this roundup and the one I recommend when documentation micrographs need to survive cropping, zooming, and large-format printing. The 16MP sensor captures detailed images that hold up under inspection, and the bundled reduction lens ensures the field of view matches microscope magnification rather than cropping the center of the image.
USB 3.0 is a real upgrade over the USB 2.0 cameras earlier in the list. Transfer speeds are fast enough to keep live imaging smooth even at high resolutions, and the included calibration kit enables precise measurement work out of the box. Software support spans Windows, macOS, and Linux, which is rare in this category and matters for labs running mixed-OS environments.
The trade-off is frame rate. At full 16MP resolution, the live frame rate drops noticeably compared to 5MP and 2MP alternatives. For still documentation that is fine; for live demonstrations that need silky-smooth video, it is a constraint. The bundled software feels dated and could use a refresh, though it remains functional for capture, measurement, and calibration. A few users report live-view lag that makes focusing at high magnification tricky.
Build quality is solid thanks to aluminum construction, and the camera ships with adapters for 23.2mm, 30mm, and 30.5mm tubes. For high-resolution documentation in a lab, classroom, or serious hobby setup, the Swiftcam 16MP is our high-resolution pick. Skip it if smooth live video is the priority, or if your workflow needs modern software UI.
USB 3.0 advantage
USB 3.0 transfer speed keeps the live view responsive at high resolutions and shortens the time between capture and review. For documentation workflows that produce dozens of images per session, that speed compounds into real time savings.
Best fits and limitations
The Swiftcam 16MP is the right pick when high-resolution micrographs are the priority, when you need cross-platform software support, or when you want a complete bundle with reduction lens and calibration kit. It is the wrong pick when live frame rate is critical, when modern software UI matters, or when the budget is tight.
Buying Guide: How to Choose the Right Microscope Camera for Documentation
Choosing a documentation camera starts with how you want to view the image. USB cameras plug into a computer and stream live view through software, which is ideal for measurement, annotation, and saving files into lab workflows. HDMI cameras output directly to a monitor or projector with no computer required, which makes them perfect for soldering benches, group demonstrations, and live-cell imaging on a teaching station. Wi-Fi cameras connect to a tablet or phone but typically run at lower resolution and frame rates, which limits them to quick-look and casual sharing. C-mount cameras mount to the trinocular phototube of research-grade microscopes and deliver the best image quality at the cost of needing a proper microscope. Eyepiece cameras drop into the eyepiece tube and are the most flexible option for shared teaching scopes.
Sensor type matters more than megapixel count. CMOS sensors are affordable and work well for brightfield documentation. sCMOS sensors cost more but deliver lower read noise and higher dynamic range, which makes them the right choice for fluorescence and low-light documentation. If you are shooting brightfield slides, the CMOS sensors in this roundup are more than enough. If you need fluorescence documentation, plan on spending more for an sCMOS option.
Megapixel count and pixel size trade off against each other. Higher megapixels deliver more detail for cropping and printing, but smaller pixels capture less light and produce noisier images in dim conditions. For most documentation work, 5MP is the sweet spot — enough detail for screens and prints, with pixels large enough to keep noise under control. If you need to crop heavily or print at large sizes, jump to 14MP or 16MP. For routine brightfield work, 2MP at 1080p is often enough.
Frame rate affects how smooth live view feels and how well you can focus at high magnification. 30 fps at full resolution is the minimum for comfortable live work. Some cameras drop frame rate at higher resolutions, so check the spec sheet carefully if smooth live view matters. For soldering and PCB inspection, 60 fps at 1080p over HDMI is the gold standard.
Software is a hidden deal-breaker. Look for cameras that include measurement, calibration, and annotation in the bundled software with no annual license fee. Subscription-based microscope software is a recurring cost that adds up fast. Mac and Linux support is rare but valuable if your lab runs mixed operating systems. Cross-platform support on the Swiftcam 16MP and Swift EP2M in this roundup is a meaningful differentiator.
Warranty length signals manufacturer confidence. Two years is standard for name-brand cameras like Celestron. Five-year mechanical warranties from Swift are unusually strong. Shorter warranties on imported C-mount cameras are a calculated risk that pays off when the unit works and becomes painful when it does not.
For broader imaging workflows outside the microscope, our guides to the best conference room cameras, best trail cameras, and best sewer inspection cameras cover other imaging categories worth knowing about.
Frequently Asked Questions
Which microscope camera is best for documentation?
For most documentation workflows the Swift 5MP Digital Camera for Microscopes is the strongest overall pick thanks to its Sony back-illuminated sensor, 30 fps live view at full 2592×1944, and bundled Swift software with measurement, calibration, and annotation. For tighter budgets the AmScope MD500-CK with calibration kit delivers measurement-grade documentation at the lowest price. For HDMI-driven soldering and inspection benches the HAYEAR 14MP with dual HDMI and USB output is our preferred pick.
What megapixel do I need for lab documentation?
For most lab documentation work, 5MP is the sweet spot. It is enough detail for screens, reports, and standard prints without the noise trade-offs of smaller pixels. If you need to crop heavily or print at large poster sizes, jump to 14MP or 16MP. For routine brightfield teaching and inspection, 2MP at 1080p is often enough.
Do microscope cameras need annual software licenses?
Most dedicated microscope cameras ship with bundled software that does not require an annual license. Swift, AmScope, Celestron, SVBONY, and Swiftcam all include measurement, calibration, and capture in the box. Subscription-based microscope software exists, but it is more common in research-grade platforms than in the cameras covered in this roundup. Check the spec sheet before buying if avoiding recurring fees matters.
USB or HDMI microscope camera for documentation?
USB cameras are the right pick when you need measurement, annotation, and file saving into a lab workflow on a computer. HDMI cameras are the right pick when you need a live feed on a monitor or projector without a computer, especially for soldering, PCB inspection, and group demonstrations. If your documentation work needs both, dual-output cameras like the HAYEAR 14MP run HDMI and USB simultaneously.
What is the difference between CMOS and sCMOS for documentation?
CMOS sensors are affordable and deliver clean images for brightfield documentation, which is what most lab, teaching, and inspection workflows need. sCMOS sensors cost significantly more but deliver lower read noise and higher dynamic range, which makes them the right choice for fluorescence documentation, low-light imaging, and quantitative work where every photon matters. For routine brightfield documentation, the CMOS sensors in this roundup are more than enough.
Final Verdict
The best microscope camera for documentation depends on what your bench actually does. The Swift 5MP earns our editor’s choice for routine lab and teaching documentation thanks to its sensor quality and bundled software. The AmScope MD500-CK with calibration kit is the right pick when measurement is non-negotiable. The HAYEAR 14MP and NICE-POWER 13MP kit cover soldering and inspection workflows where HDMI output to a workshop monitor matters.
If you’re shopping for the best microscope cameras for documentation in 2026, start by matching the camera’s output to your workflow. USB for lab computers, HDMI for inspection benches, and a dual-output camera when you need both. The cameras in this roundup cover every common documentation use case, and each one has been tested in our lab for at least two weeks before earning a spot on this list.
