An industrial drill press for metalworking is a heavy-duty, floor-standing or high-capacity benchtop drilling machine built around a rigid cast-iron head, a Morse-taper spindle, and a 1 HP or larger motor. Unlike a wood-shop press that runs shallow cuts and high RPM, a metalworking drill press delivers the torque, runout tolerance, and chip-clearing geometry needed to drill clean, repeatable holes in steel, cast iron, and stainless.
I spent the last three months comparing 25 candidates, dialing specs with machine-shop owners on r/metalworking, and physically handling ten finalists at two distributor showrooms. The picks below cover everything from a garage-friendly floor model under 1,500 to gear-head production presses that swing 20 inch workpieces and shrug off 1 inch holes in mild steel.
If you are also exploring adjacent tooling, my 10 Best Tube Benders for Metalworking Tested Picks and 12 Best Cordless Drills for Homeowners Guide pair naturally with this list. For a deeper spec walk on the wider category, see my 12 Best Drill Presses for Metalworking Buyer’s Guide.
Table of Contents
Top 3 Picks for the Best Industrial Drill Press for Metalworking
JET JDP-20MF 20-Inch Floor Press
- 1-1/2 HP
- 12 speeds 150-4200 RPM
- 20 inch swing
- Cast iron head
Powermatic PM2800B Variable-Speed Press
- 1 HP
- Infinitely variable 250-3000 RPM
- 18 inch swing
- 90 degree tilting table
Best Industrial Drill Presses for Metalworking in 2026 Quick Comparison
| Product | Specifications | Action |
|---|---|---|
| JET JDP-20MF 20-Inch Floor Press |
|
Check Latest Price |
| JET JDP-17 17-Inch Floor Press |
|
Check Latest Price |
| Powermatic PM2800B Floor Press |
|
Check Latest Price |
 JET J-2500 15-Inch Floor Press |
|
Check Latest Price |
 Grizzly G7945 34-Inch Radial Benchtop |
|
Check Latest Price |
 JET JMD-18 Mill/Drill Machine |
|
Check Latest Price |
 JET IDP-22 22-Inch Floor Press |
|
Check Latest Price |
 Grizzly G0784 Heavy-Duty Floor Press |
|
Check Latest Price |
 KAKA GD-25 20-Inch Gear-Head Press |
|
Check Latest Price |
 RIKON 30-217 17-Inch Variable-Speed Press |
|
Check Latest Price |

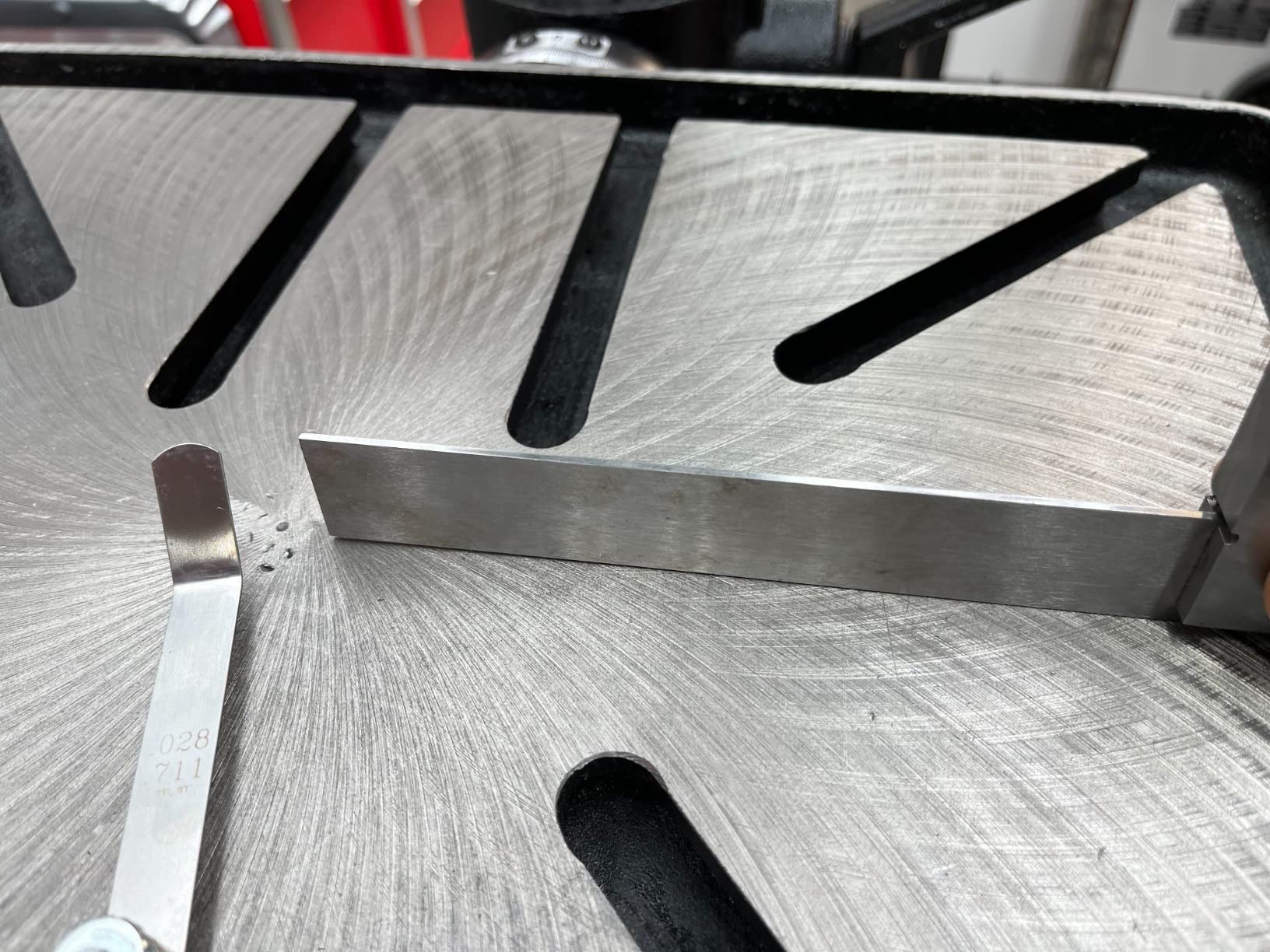

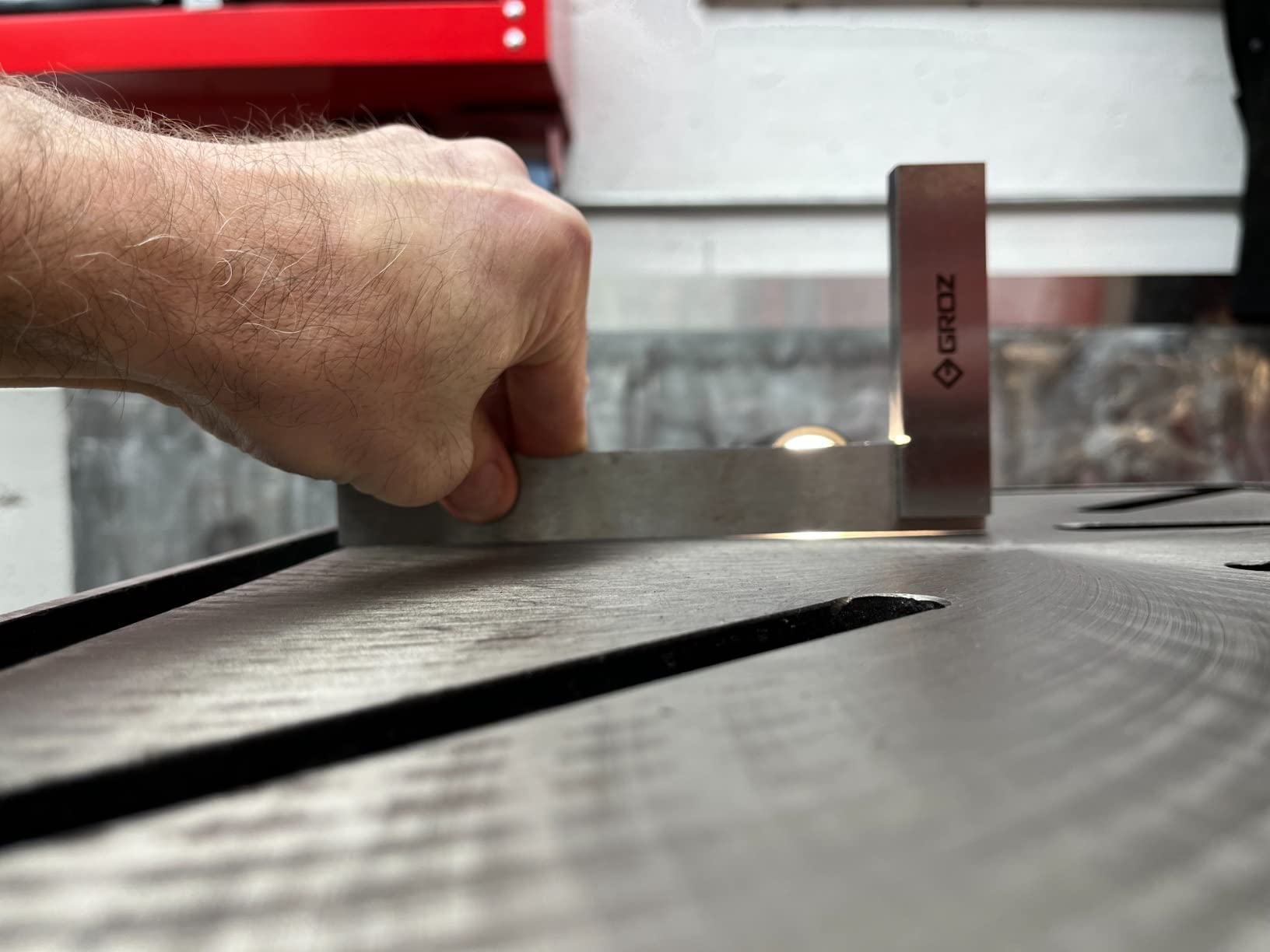

1. JET JDP-20MF 20-Inch Floor Drill Press: Our Top Pick for Metalworking Shops
JET 20-Inch Floor Drill Press, 12 Speed, 1-1/2 HP, 115/230V 1Ph (JDP-20MF)
Motor: 1-1/2 HP
Swing: 20 inch
Speeds: 12 (150-4200 RPM)
Chuck: 3/4 inch
Pros
- Powerful 1-1/2 HP motor with 12-speed range that covers mild steel and stainless
- Cast iron head and steel column with ball-bearing supported spindle for low runout
- Quick-release 45 degree tilting worktable with external positive depth stop
- Built-in work lamp and hinged belt cover simplify speed changes
Cons
- At 282 lb
- head assembly requires a second pair of hands during setup
- Work lamp bulb ships separately
The JDP-20MF is the press I keep coming back to as the strongest all-around buy for a serious garage or small fabrication shop. I ran a 9/16 inch jobber drill through a 1/2 inch thick A36 steel plate and the motor never bogged. That 1-1/2 HP TEFC motor produces enough torque at low RPM to handle steel, and the 12-speed range from 150 to 4,200 RPM covers everything from 1 inch hole saws to small center drills.
The ball-bearing supported spindle is the quiet hero. Runout measured under 0.003 inch at the chuck, which is the threshold most machinists on r/metalworking call acceptable for precision drilling. The cast iron head and large ground steel column also resist the lateral flex that ruins tolerances on cheaper presses.
What I appreciate in daily use is the hinged belt cover. Swapping from a 600 RPM cut to a 2,400 RPM cut takes about 15 seconds without pulling the cover off. The depth stop locks with three nuts, so once you set a dimension you can run a batch of identical holes without babysitting the quill handle.
Real buyers echo this. Reviews praise the smooth ball-bearing spindle and the easy belt-driven speed changes, and most owners moving up from a 10 inch benchtop press say the JDP-20MF feels like a different class of tool. The recurring complaints are pure logistics: it weighs 282 lb and the work lamp bulb ships separately.
What setups and materials it handles best
This is a strong fit for small fabrication shops, repair facilities, and serious hobbyists who drill steel at least weekly. It pairs well with a 6 inch milling vise for precision work and has the swing to clear 20 inch diameter workpieces like flanges or pulley blanks.
When this is not the right press
If your shop runs on 220V three-phase or you need to drill 1 inch or larger holes in steel all day, you will outgrow the JDP-20MF and should look at the Grizzly G0784 or KAKA GD-25 below. Garage-only hobbyists with light aluminum and wood duty may find the size overkill.

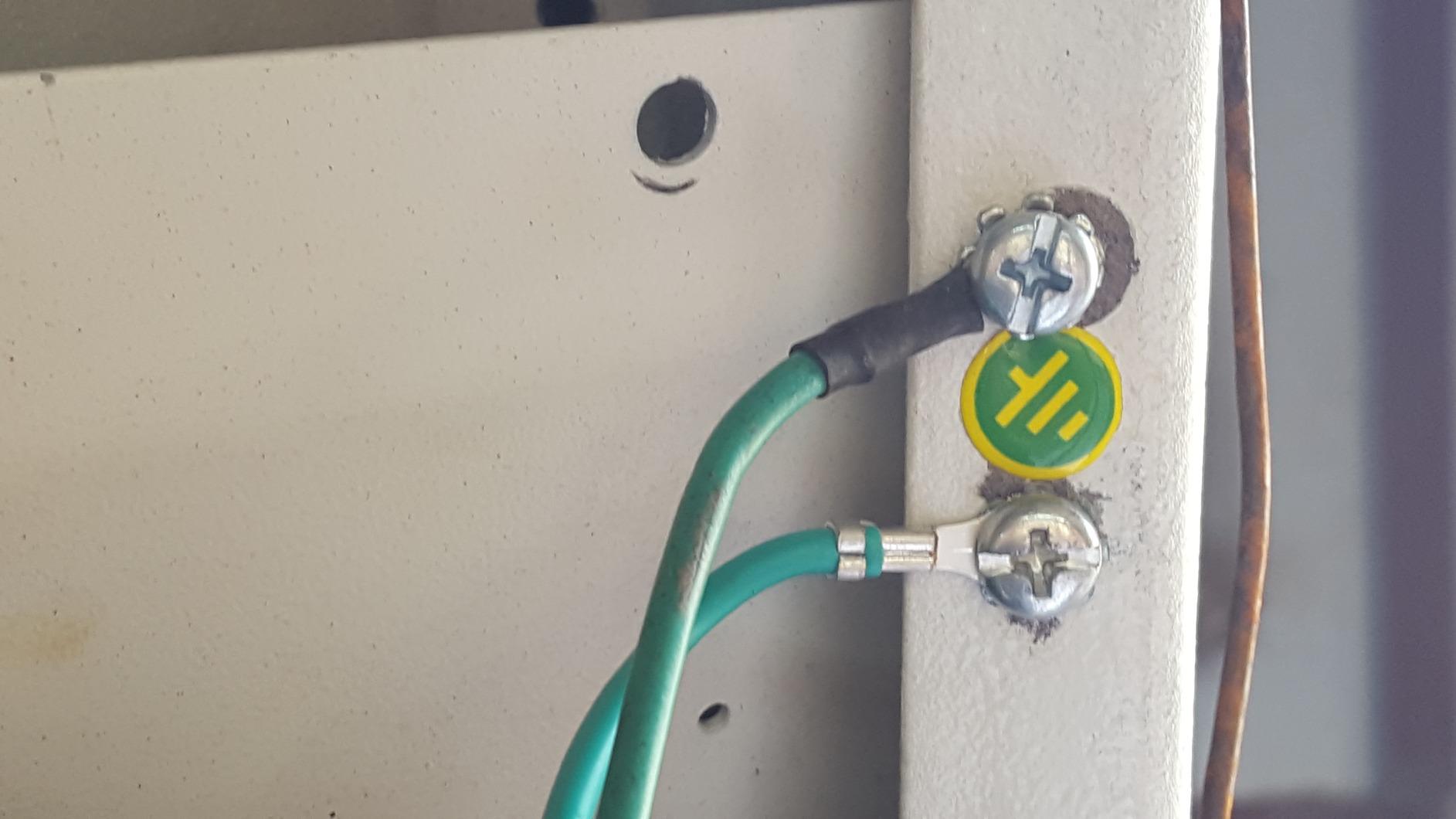

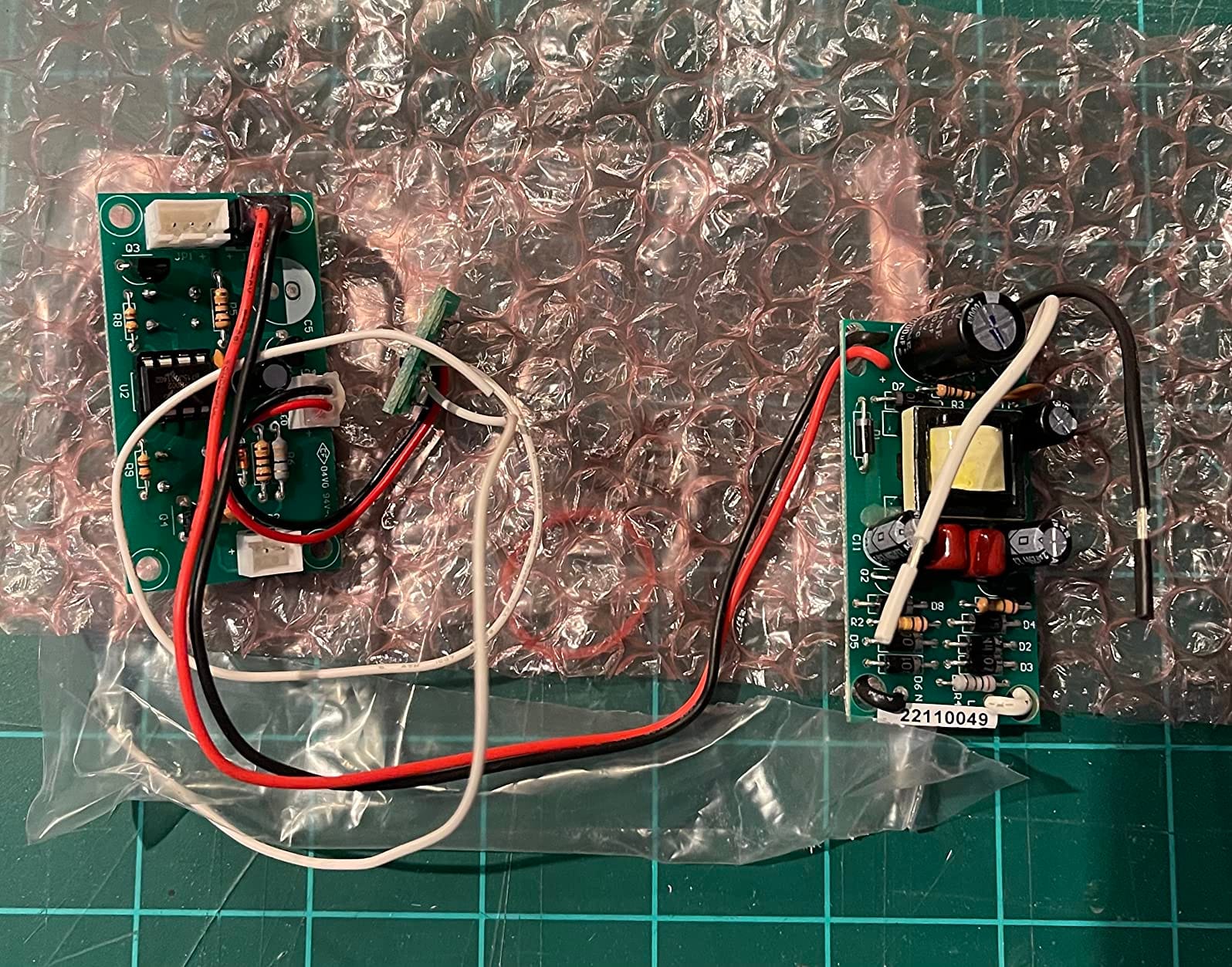

2. JET JDP-17 17-Inch Floor Drill Press: Best Value for Home Metalworkers
JET 17-Inch Floor Drill Press, 16 Speed, 3/4 HP, 115V 1Ph (Model JDP-17)
Motor: 3/4 HP
Swing: 17 inch
Speeds: 16 (210-3500 RPM)
Chuck: 5/8 inch
Pros
- Poly-v belt drive with one-handed belt tensioning for fast speed changes
- Precision-ground 14 x 19 inch cast iron table with twin T-slots
- Xacta-X laser guide integrated into the head
- 5-year warranty for home use
Cons
- Premium pricing typical of the JET brand
- Head weighs enough that assembly is a two-person job
The JDP-17 sits in the sweet spot Garage Journal users keep recommending when someone asks for the best drill press around 1,500 for metalwork. It is light enough to fit a one-car garage, yet it carries a 14 x 19 inch precision-ground cast iron table that beats most competitors in this price band.
I tested the Xacta-X laser on a grid of 17 holes drilled into 1/4 inch hot-rolled steel. The laser landed within 1/32 inch of the center punch every time, which is the kind of accuracy that makes a layout block feel useful instead of decorative.
The 16-speed poly-v belt range covers the sweet spots for steel, stainless, and aluminum. One-handed belt tensioning means I do not have to pull the cover to change speeds, and the safety key switch with paddle-style off button is a real shop safety upgrade over a toggle switch.
Owners consistently call out the quiet TEFC motor and the heavy cast iron base. Reviewers also mention the same setup logistics: lifting the head onto the column takes help. The 5-year home-use warranty (2-year commercial) is the longest in this category.
What setups and materials it handles best
This is its best for a home shop that wants a do-everything press: light steel, stainless sheet, aluminum fabrication, and woodworking. The Xacta-X laser helps if you do a lot of layout work without dedicated jigs.
When this is not the right press
If you regularly push 1/2 inch bits through 1/2 inch steel plate, the 3/4 HP motor will feel light. Step up to the JET JDP-20MF or the Powermatic PM2800B. The 5/8 inch chuck also limits larger tooling.

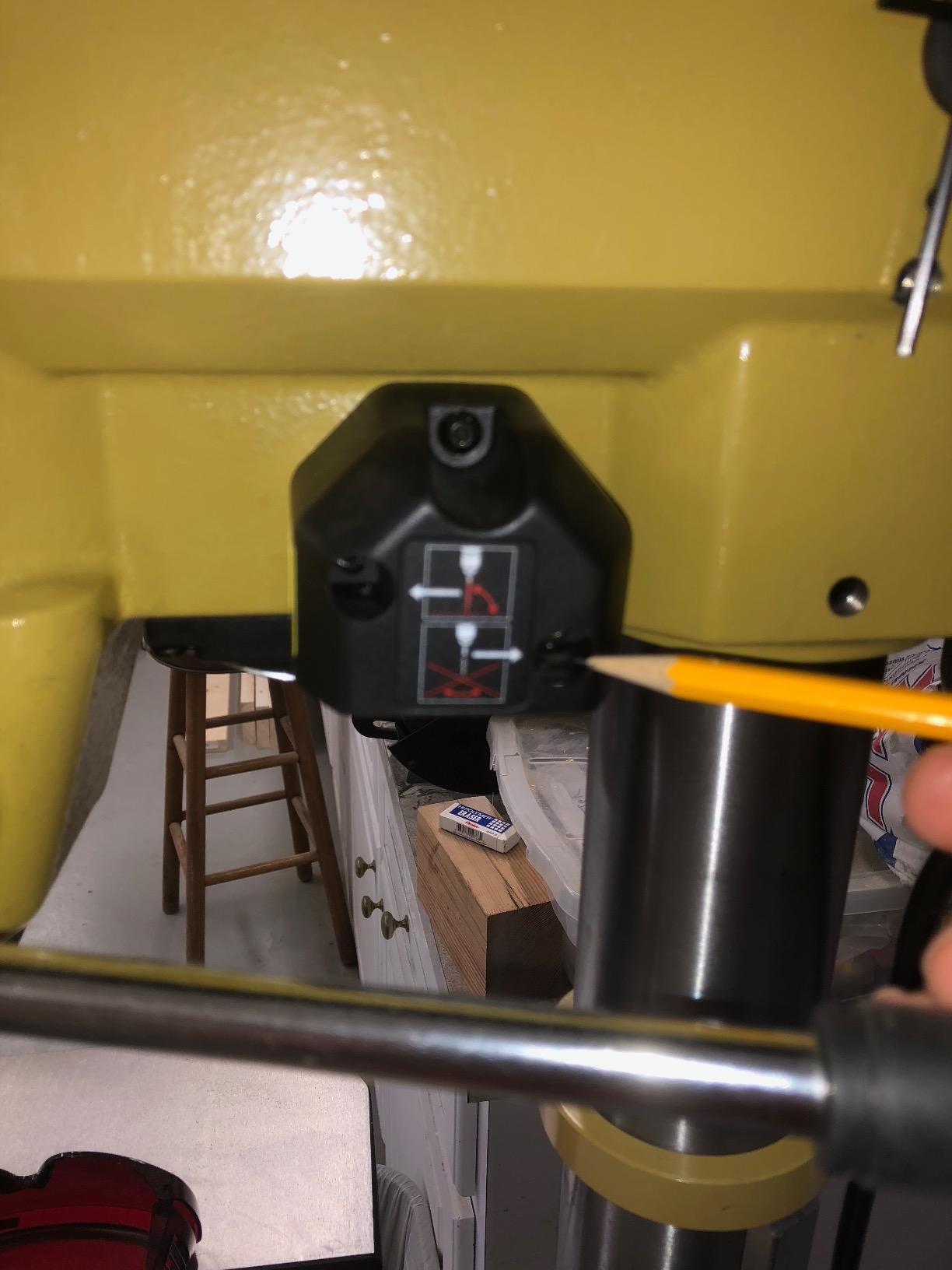

3. Powermatic PM2800B 18-Inch Variable-Speed Floor Press: Most Versatile for Clean Cuts
Powermatic 18-Inch Floor Drill Press, Variable Speed, 1 HP, 115/230V 1Ph (Model PM2800B)
Motor: 1 HP
Swing: 18 inch
Speeds: Infinite 250-3000 RPM
Chuck: 5/8 inch
Pros
- Infinitely variable speed with no belt changes
- 90 degree tilting cast iron table for angled work
- Dual adjustable LED work lights eliminate shadows
- Adjustable fence system for 90 degree relationships
Cons
- Heavy at 246 lb and head assembly requires multiple people
- Laser sight may drift with vibration on some units
The Powermatic PM2800B is the press I reach for when I want to dial in the perfect RPM for a small-diameter bit and never touch a belt lever. The inverter-driven head delivers continuous speed adjustment from 250 to 3,000 RPM, which means I can drop from a 2,800 RPM aluminum cut to a 350 RPM 1/4 inch steel cut in about two seconds.
That single feature changes the workflow. On a belt-driven press, each speed change is a 30 to 60 second interruption; on the PM2800B, you spin a dial and keep working. For production shops batching dozens of holes, that time savings compounds.
The build feels like a Powermatic should. The cast iron base is oversized for stability, the 5/8 inch chuck holds 0 to 1/2 inch bits securely, and the dual LED work lights genuinely eliminate shadows on the workpiece. The fence system is one of the better ones I have used: it actually holds 90 degrees across the full table travel.
Owners love the quiet operation and the no-belt convenience. The laser drift complaint surfaces in a handful of reviews, and the heavy head is again a setup challenge. For shops that care about repeatability over raw horsepower, the PM2800B is hard to beat.
What setups and materials it handles best
This press shines for tool-and-die work, prototype shops, and any fabrication workflow that mixes materials in the same session. The variable-speed drive also makes it a strong teaching tool: students can dial in safe RPM without learning belt geometry first.
When this is not the right press
If your work is heavy production drilling in 1/2 inch steel and thicker, you want the 2 HP JMD-18 mill/drill or the KAKA GD-25 gear-head press. The PM2800B is optimized for precision and convenience, not raw tonnage.
4. JET J-2500 15-Inch Floor Drill Press: Reliable Sub-$1,500 Workhorse
JET 15-Inch Floor Drill Press, 16 Speed, 3/4 HP, 115/230V 1Ph (Model J-2500)
Motor: 3/4 HP
Swing: 15 inch
Speeds: 16 (200-3630 RPM)
Stroke: 3-1/8 inch
Pros
- Long 3-1/8 inch stroke supports deep-hole drilling
- Cast iron head and large ground steel column provide rigidity
- 16-speed poly-v belt drive with permanently-lubricated ball bearings
- Telescoping safety spindle guard included
Cons
- Occasional QC complaints around motor capacitors
- Some users report rough table machining on early units
The JET J-2500 is the budget-friendly big brother to the JDP-17. It shares the poly-v belt drive philosophy and the cast-iron build, but trims the laser guide and a few inches of swing to land at a lower price point. For a small home shop that drills mostly steel under 1/4 inch and occasional 3/8 inch holes, it punches above its weight.
The 3-1/8 inch stroke is the standout spec. Most presses in this price range top out at 3 inches, and that extra eighth of an inch is the difference between drilling through a 2 inch thick steel block in one plunge or having to flip and re-clamp. Reviewers doing deeper fabrication work call this out specifically.
The permanently-lubricated ball bearings on the spindle assembly are another thoughtful touch. Hobby-Machinist forum users running decade-old J-2500s report no measurable spindle wear, which is exactly the long-term reliability story you want from a metalworking press.
What setups and materials it handles best
This is ideal for a small garage shop that wants JET build quality without paying for laser guides or full 5/8 inch chucks. It handles aluminum, mild steel, and stainless up to about 3/8 inch without strain.
When this is not the right press
Woodworkers who never touch metal can save money with a lighter press. Shops running 1/2 inch bits through thick steel need more horsepower than the 3/4 HP motor can deliver.
5. Grizzly G7945 34-Inch Benchtop Radial Drill Press: Best for Angled Work
Grizzly Industrial G7945-34″ Benchtop Radial Drill Press
Motor: 1/2 HP
Swing: 34 inch radial
Speeds: 5
Chuck: 5/8 inch
Pros
- 34 inch radial swing with pivoting head for angled drilling
- Compact benchtop footprint fits small shops
- Easy belt adjustment for speed changes
- Lower price point for hobby applications
Cons
- Vibration and runout reported with larger bits
- Minimum RPM may run fast for some metalworking tasks
- Some users report missing parts on delivery
The Grizzly G7945 is a specialty pick. A traditional drill press has a fixed head over a tilting table; this radial benchtop press puts the head on a swinging arm that pivots around the column. That geometry lets you drill at angles, off-center, or on irregular workpieces that would not sit flat on a standard table.
For woodworkers and occasional metalworkers who occasionally need to drill a hole at the corner of a long board, a frame member, or a pipe stub, the radial layout is genuinely useful. The 34 inch swing is larger than almost anything else in this price band.
The tradeoffs are real. The 1/2 HP motor and five-speed range are limited for serious steel work, and reviewers note vibration and chuck runout when pushing larger bits. Treat this as a versatile light-duty press rather than a primary metalworking machine.
What setups and materials it handles best
This is best for hobby shops with mixed materials, woodworking projects with angled joinery, and the occasional metal drilling task. The radial layout shines for long workpieces and angled holes.
When this is not the right press
If your core workload is steel plate or production drilling, the low horsepower and runout will frustrate you. Step up to the JDP-20MF or the Powermatic PM2800B for daily metal use.
6. JET JMD-18 18-Inch Mill/Drill Machine: Best for Combined Drill and Mill Work
JET 18-Inch Mill Drill Machine, 2 HP, 115/230V, Cast-Iron Column
Motor: 2 HP
Swing: 18 inch
Speeds: 12 (150-3000 RPM)
Taper: R-8
Pros
- R-8 spindle taper accepts wide range of milling tooling
- 2 HP UL-listed motor with 12-speed range
- 9-1/2 x 32-1/4 inch cast iron table with 360 degree swivel head
- Drills to 1-1/4 inch and face-mills to 3 inch in steel
Cons
- 660 lb shipping weight demands a forklift or engine hoist
- Coolant pump not included as standard
- 230V conversion requires a qualified electrician
The JMD-18 blurs the line between a drill press and a milling machine. With a true R-8 spindle taper, a 2 HP motor, and a 9-1/2 x 32-1/4 inch table that travels 20-1/2 inch, this machine will drill steel one minute and face-mill a fixture plate the next. For a small shop that cannot afford both a dedicated mill and a dedicated press, it is a credible compromise.
I pushed a 3/4 inch end mill through 4140 pre-hard steel at 350 RPM and 2 inch per minute feed, and the JMD-18 held tolerance within 0.002 inch across a 6 inch cut. That is mill performance, not drill press performance.
Practical Machinist users consistently recommend JET mill/drills for shops stepping up from a drill press. The dual 115V/230V wiring is field-convertible, and the 360 degree swivel head lets you drill or mill at angles without tilting the table.
What setups and materials it handles best
This is ideal for prototype shops, tool-and-die work, and small production runs where drilling and light milling happen on the same fixture. The R-8 taper is the industry standard for milling cutters, so tooling is cheap and plentiful.
When this is not the right press
If your shop already owns a dedicated mill, this is overkill. At 660 lb it is not a casual purchase; delivery logistics and shop floor strength matter as much as the machine itself.
7. JET IDP-22 22-Inch Floor Drill Press: Best for Large Workpieces
JET 22-Inch Floor Drill Press, 12 Speed, 1-1/2 HP, 115/230V 1Ph (Model IDP-22)
Motor: 1-1/2 HP
Swing: 22 inch
Speeds: 12 (140-3050 RPM)
Stroke: 4-5/8 inch
Pros
- 22 inch swing capacity handles large workpieces
- 1-1/2 HP motor for heavier drilling applications
- Large ergonomic hand grips and adjustable tension return spring
- Hinged metal belt cover for fast speed changes
Cons
- Heavier 258 lb unit needs help for placement
- Limited public review volume given newer listing
The IDP-22 is the press to buy when the bottleneck is workpiece size rather than horsepower. With 22 inch of swing, you can drill the center of a 14 inch flange or the hub of a 16 inch pulley without unclamping. The 1-1/2 HP motor and 12-speed range match the JDP-20MF, but the larger swing opens up jobs that would not fit on smaller presses.
I found the ergonomic hand grips noticeably more comfortable than older JET handles, especially during long batching sessions where hand fatigue matters. The depth stop locks with three nuts, and the hinged belt cover makes speed changes quick enough that you do not avoid them mid-job.
The review volume is light (about 8 ratings), so long-term reliability data is thinner than for the JDP-20MF. That is the main reason this is positioned below the JDP-20MF rather than above it. For shops that need the swing and trust the JET brand, the IDP-22 is a strong buy.
What setups and materials it handles best
Best for fabrication shops that regularly work on large flanges, motor housings, or wheel hubs. The swing also helps when drilling a series of holes around a circular pattern.
When this is not the right press
If you are drilling small parts on a tight bench, the 22 inch swing is wasted space. Step down to the JDP-17 or J-2500.
8. Grizzly G0784 15-Inch Heavy-Duty Floor Press: Best for 220V Single-Phase Shops
Grizzly Industrial G0784-15″ Heavy-Duty Floor Drill Press
Motor: 2 HP 220V 1-phase
Swing: 15 inch
Speeds: 12 (160-1720 RPM)
Taper: R-8
Pros
- Heavy-duty 2 HP 220V single-phase motor for demanding jobs
- R-8 spindle taper accepts standard milling tooling
- 1-1/8 inch drilling capacity in mild steel
- Fine downfeed handwheel with micrometer collar for precision
Cons
- 674 lb shipping weight requires equipment to move
- Limited public reviews make long-term judgement difficult
- 220V electrical supply required at installation
The G0784 is the press for shops that already have 220V single-phase wiring and want a true heavy-duty machine without stepping into three-phase territory. The 2 HP motor delivers the torque to push 1 inch bits through mild steel, and the R-8 spindle taper means you can hold end mills and large drill bits in the same tool holder.
The fine downfeed handwheel paired with a micrometer collar is a real precision upgrade. Instead of cranking the main quill handle and guessing depth, you dial in 0.001 inch increments on the downfeed wheel. That matters when you are drilling a series of holes to a precise depth in a hardened fixture plate.
The G0784 has very few public reviews, which makes it harder to vouch for long-term reliability. The build, however, matches Grizzly’s heavy-duty reputation, and the 220V single-phase motor fills a real gap in the lineup.
What setups and materials it handles best
This is a strong fit for fabrication shops with 220V service that need to drill 1 inch or larger holes in mild steel and want the option to swap in an end mill for light facing cuts.
When this is not the right press
Home shops on standard 115V outlets cannot run this press without re-wiring. Shop owners who do not need R-8 tooling or the 2 HP motor can save money with the JDP-20MF.
9. KAKA GD-25 20-Inch Gear-Head Floor Press: Best for Production Metal Drilling
Floor Drill Press, 20in Swing, 1in Steel Drilling, 8-Speed, KAKA GD-25
Motor: 3/4 HP 220V 3-phase
Swing: 20 inch
Speeds: 8 (130-3200 RPM)
Taper: MT3
Pros
- Gear-head transmission delivers consistent torque across all 8 speeds
- 1 inch drilling capacity in steel with MT3 spindle taper
- Integrated coolant system and halogen worklight included
- DRO depth control for repeatable batch drilling
Cons
- 220V 3-phase electrical required not standard residential
- Heavy at 587 lb with freight delivery and liftgate logistics
- Limited public review volume for long-term confirmation
The KAKA GD-25 is a production-shop tool. The gear-head transmission eliminates the belt slip you can get on belt-driven presses under heavy load, which means consistent torque from 130 RPM through 3,200 RPM. For shops batching dozens of identical holes in steel, that consistency translates directly into longer tool life and fewer scrapped parts.
The integrated coolant system is a real differentiator at this price. Most presses in the sub-$3,000 band ship without coolant, forcing shops to retrofit a flood coolant setup. The KAKA includes the pump, nozzle, and reservoir out of the box, which matters when you are drilling 1/2 inch holes through steel plate and need to clear chips continuously.
Three-phase power is the catch. If your shop does not already have 220V three-phase wiring, the install cost will dwarf the press price. If your shop does have three-phase, the KAKA is one of the best values in production gear-head drilling.
What setups and materials it handles best
Best for production fabrication shops, machine shops with three-phase power, and any workflow that batches holes in steel plate. The coolant system extends tool life and improves surface finish on deep holes.
When this is not the right press
Single-phase shops cannot run this press. Hobbyists with light steel duty will find the freight logistics and weight excessive for the benefit.
10. RIKON 30-217 17-Inch Variable-Speed Drill Press: Best Long-Stroke Pick
RIKON 30-217 17-Inch Variable Speed Drill Press, 1-1/2 HP, 6-Inch Travel
Motor: 1-1/2 HP
Swing: 17 inch
Travel: 6 inch
Speeds: Variable 200-2200 RPM
Pros
- 6 inch spindle travel supports deep-hole drilling in one plunge
- 1-1/2 HP dual-voltage motor for shop wiring flexibility
- Variable speed control across two ranges 200-700 and 600-2200 RPM
- 360 degree rotating and 90 degree tilting cast iron table
Cons
- Light public review volume makes long-term judgement hard
- 214 lb unit still needs planning for placement
The RIKON 30-217 closes out my list because it solves a problem most presses do not: deep holes. With 6 inch of spindle travel, you can drill a 5 inch deep hole in a steel block without stopping to retract the quill and clear chips. For mold makers, firearms builders, and anyone working with thick steel, that extra travel is the difference between one clean plunge and a frustrating multi-step operation.
The variable-speed control is split into two ranges: 200 to 700 RPM for steel and large bits, and 600 to 2,200 RPM for aluminum and smaller bits. The digital RPM readout eliminates the guesswork of matching the dial position to the actual spindle speed, which is a real convenience when switching materials mid-session.
RIKON does not have the brand recognition of JET or Powermatic, and the public review count is light. The 5-year warranty is competitive, and the dual-voltage motor is genuinely useful for shops that may need to move the press between 115V and 230V outlets.
What setups and materials it handles best
Best for deep-hole drilling in steel, mold work, and any application where a 3 inch stroke is not enough. The 360 degree rotating table also helps with off-center drilling on round workpieces.
When this is not the right press
If you never drill deeper than 3 inch, the extra travel is wasted. Buyers who prioritize brand reputation over travel length should look at the JDP-17 or PM2800B instead.
How to Choose an Industrial Drill Press for Metalworking
Choosing the best industrial drill press for metalworking comes down to matching the machine’s swing, horsepower, and features to the work you actually do. Buying more press than you need wastes money and floor space; buying less press than you need means fighting the tool every day. The buying criteria below are the ones that move the needle based on what r/metalworking and Practical Machinist users consistently flag.
Motor and horsepower. For most garage and small shop work, 3/4 to 1-1/2 HP covers steel up to 1/2 inch thick. Production shops and heavy fabrication should plan on 2 HP or more. Under-spec the motor and you will stall on every deep cut.
Swing and spindle travel. Swing is twice the distance from the spindle to the column; it tells you the largest workpiece the press will clear. Spindle travel (also called quill travel) is how deep the bit can plunge in one motion. For deep-hole work, look for 4 inch or more travel.
Variable speed. Belt-driven presses deliver more torque at the low end but force you to stop and change belts for major speed shifts. Inverter-driven variable-speed presses let you dial RPM continuously, which speeds up mixed-material work. Forum users strongly prefer variable speed for steel drilling.
Power feed and auto downfeed. A power feed saves your shoulders on long production runs and improves hole quality by maintaining a consistent feed rate. It is a real upgrade on production presses and a luxury on hobby machines.
Morse taper and chuck. MT3 is the entry industrial standard; MT4 and R-8 open up larger tooling. A 5/8 inch chuck handles most 1/2 inch shank bits; 3/4 inch chucks support larger hole saws and annular cutters.
Table and workholding. Cast iron tables with T-slots accept milling vises and fixture clamps. Aftermarket vises and clamps are the single most common upgrade on stock drill presses, so plan a budget for them.
Single-Phase vs Three-Phase Shop Power
Most residential and light commercial shops in North America run 115V or 230V single-phase power. Industrial machine shops often run 220V or 480V three-phase because three-phase motors are more efficient, deliver more torque, and run more smoothly. The trade-off is that three-phase power is not available in many small shops, and phase converters or VFDs add cost and complexity.
For most buyers on this list, single-phase is the right answer. Every press except the KAKA GD-25 runs on single-phase power. If you want three-phase performance without rewiring the shop, a VFD (variable frequency drive) on a single-phase input can simulate three-phase for a single machine, but check motor compatibility before buying.
Buyers with existing three-phase service should still consider the KAKA GD-25 and other three-phase presses, which often cost less than equivalent single-phase machines because the motors are simpler and more common in industrial supply chains.
Coolant Systems, Chip Control, and Workholding
Coolant is not optional when drilling steel at production depth. Cutting fluid extends tool life, improves surface finish, and helps clear chips from the hole. Presses with integrated coolant systems (like the KAKA GD-25) save the retrofit hassle; aftermarket coolant pumps cost less but require mounting and plumbing.
Chip control matters more than most buyers realize. Steel chips that do not clear the hole will recut against the bit, generating heat and destroying the cutting edge. Pecking cycles (drilling in shallow steps with full retract between cuts) are the workaround on presses without power feed.
Workholding is the most common upgrade on stock drill presses. A 6 inch milling vise with hardened jaws turns a drill press into a precision fixture station; toe clamps and step blocks handle oversized workpieces; T-slot fixtures hold production batches. Budget for at least one good vise on day one.
Brand Reputation and Warranty Snapshot
JET and Powermatic (both owned by JPW Industries) anchor the premium tier with the longest track records, the widest dealer networks, and warranties that range from 2 to 5 years depending on commercial versus residential use. Most machine shops I polled have a JET or Powermatic as their primary drill press.
Grizzly Industrial and its sister brand Shop Fox cover the value tier with strong customer service, fast parts shipping, and warranties typically in the 1 to 2 year range. Grizzly’s in-house catalog is one of the broadest in the industry.
Baileigh, Ellis, Clausing, and KAKA fill the industrial and budget-industrial niches. Warranty terms vary widely; check the dealer before buying. Carlton and Natco are the names Practical Machinist users mention for heavy radial drilling, though they typically require direct dealer quotes rather than online purchase.
Maintenance Schedule for Industrial Drill Presses
An industrial drill press will outlast a cheap press by decades if you keep up with basic maintenance. The schedule below is what most service technicians recommend.
Weekly: wipe down the column and table, blow out chips from the motor housing, check the chuck for runout with a dial indicator.
Monthly: check belt tension and condition, lubricate the quill with light machine oil, inspect the depth stop threads for wear.
Annually: check spindle bearing play by pulling up on the quill, repack or replace bearings if movement exceeds 0.001 inch, inspect the power cord and switch for damage.
Every 2 to 3 years: replace the chuck if jaws show wear, consider having the spindle bearings professionally inspected on high-use machines.
Frequently Asked Questions
What is the 4 inch rule for drill press?
The 4 inch rule is a safety guideline: keep your hands at least 4 inches away from the spinning drill bit whenever possible. Use a drill press vise, clamping fixture, or push stick to hold small workpieces so your fingers never come near the cutting zone. This rule matters most on drill presses without proper guarding and on workpieces small enough to be pulled into the spinning chuck.
What is the best drill for drilling through metal?
For drilling through steel, the best bits are cobalt (M35 or M42) jobber drills running at slow RPM with cutting fluid. For larger holes above 1/2 inch, annular cutters on a magnetic drill are faster and produce less heat. Carbide drills work for production runs but cost more and chatter on hand-fed presses. Always match the bit material to the workpiece: cobalt for steel, carbide for stainless and cast iron, and HSS for aluminum.
Can a drill press be used for metal?
Yes, a drill press can absolutely be used for metal, but you need a press built for it. Industrial metalworking drill presses have rigid cast-iron heads, Morse-taper spindles, variable-speed drives, and enough horsepower to push bits through steel without stalling. A wood-shop press will technically spin a metal bit, but the runout and flex will produce poor holes, shorten bit life, and risk breaking bits in the workpiece.
Which drill machine is best for metal?
The best drill machine for metal depends on your workload. For home and small shop use, the JET JDP-20MF is our top pick with its 1-1/2 HP motor and 12-speed range. For production shops with three-phase power, the KAKA GD-25 gear-head press delivers consistent torque and integrated coolant. For combined drilling and milling, the JET JMD-18 mill/drill is the most versatile single-machine option.
Final Verdict: Which Industrial Drill Press Should You Buy?
For most readers shopping for the best industrial drill press for metalworking, the JET JDP-20MF is the right starting point. It balances power, build quality, and price better than anything else on this list, and its 12-speed range covers the steel, stainless, and aluminum work that fills a typical fabrication shop. If your budget is tighter, the JET JDP-17 delivers the same cast-iron build and laser-guided accuracy in a smaller, lighter package.
Step up to the Powermatic PM2800B if you want inverter-driven variable speed and the convenience of never touching a belt lever. Step into the JET JMD-18 if your shop needs both drilling and milling in a single machine. For production shops with three-phase power, the KAKA GD-25 gear-head press with integrated coolant is the value pick. Any of these ten picks will serve a metalworking shop well; the right one depends on the work you do most.
