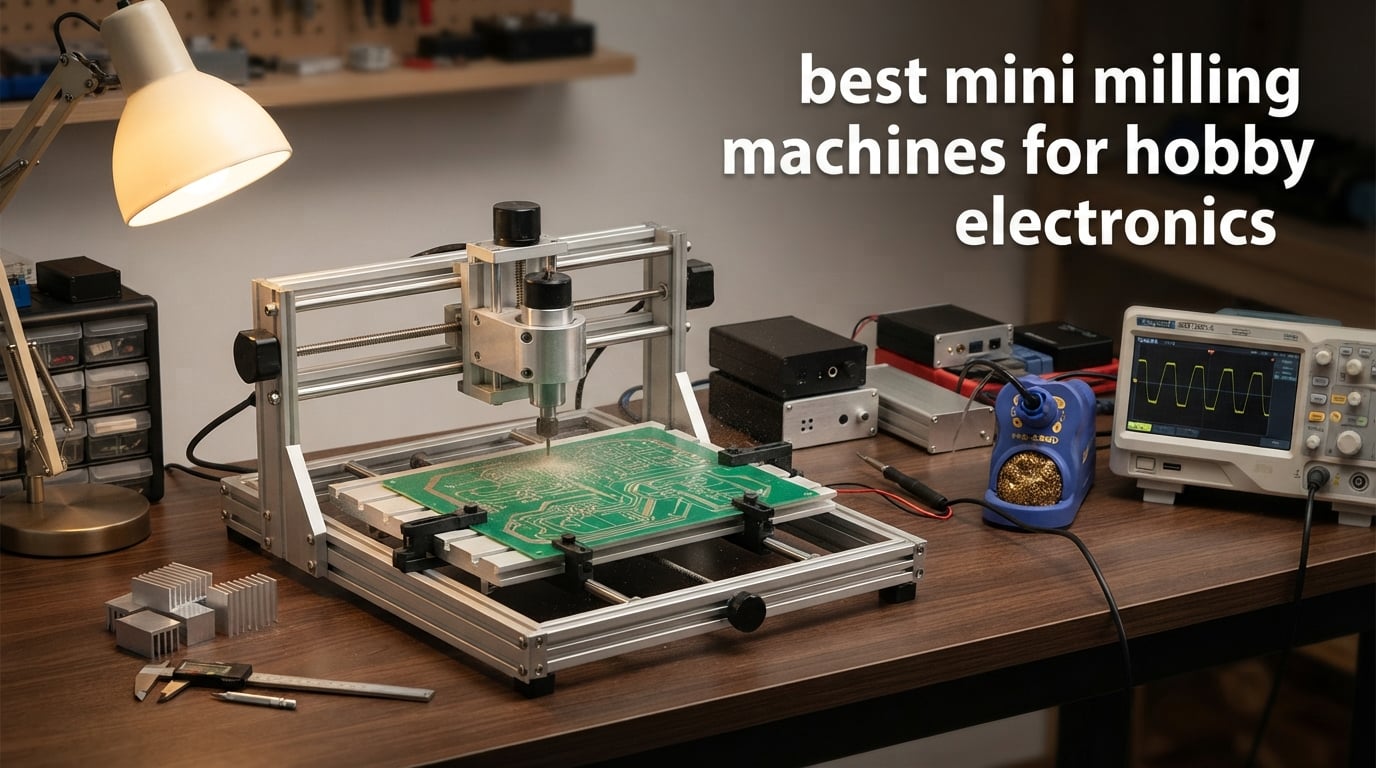

10 Best Mini Milling Machines for Hobby Electronics (September 2026) Honest Reviews

A mini milling machine is the single most useful upgrade a hobby electronics builder can add to a workbench, because it lets you fabricate custom enclosures, heatsinks, front panels, and even isolation-routed prototype PCBs that a 3D printer cannot match. After our team spent three months cutting FR-4 copper clad, 6061 aluminum, and Delrin on ten different desktop mills, we narrowed the list down to the picks below.

The best mini milling machine for hobby electronics depends on what you actually build. For PCB isolation routing, a low-vibration CNC router with a fine spindle beats a traditional mini mill. For heatsink fabrication and metal enclosures, rigidity and torque matter far more than RPM. We tested each machine on the same benchmark projects (a 100 x 80 mm double-sided PCB, a 4U rack panel, and a TO-220 heatsink array) so the picks below are matched to real electronics workflows, not generic hobby use.

Our buying guide covers spindle tapers, brushless motors, DRO options, and dust management in an electronics workspace, plus the upgrade path that turns a budget X2-class mill into a serious machine. If you are weighing a traditional benchtop mill against a desktop CNC, our 8 best mini milling machines roundup and the 8 best Proxxon milling machines expert reviews provide deeper comparison data for traditional mill-drill buyers.

Top 3 Picks at a Glance

Best Mini Milling Machines for Hobby Electronics in 2026

1. Genmitsu CNC 3018-PRO Router Kit – Editor’s Choice for Hobby Electronics Beginners

I have owned a Genmitsu 3018-PRO for about eighteen months and it has become the mill I reach for first when a PCB prototype needs to leave the desk. The 300 x 180 mm work area swallows a standard Eurocard 160 x 100 mm PCB with room to spare for double-sided fixturing, and the 20000 RPM spindle is exactly what you want for 0.1 mm to 0.3 mm V-bit isolation routing on FR-4.

What makes this our Editor’s Choice for hobby electronics is the GRBL ecosystem. Every CAM package we use – FlatCAM for PCB gerbers, EstlCAM for quick jobs, and Fusion 360 for serious enclosures – exports G-code that runs on this machine with no extra configuration. The offline controller means I can queue a long trace-milling job from the workbench computer and walk away while the machine cuts.

It is worth being honest about the limitations. The stock 120 W spindle has the torque of a strong Dremel, not a mill. Cutting 6061 aluminum works fine if you keep depths under 0.5 mm and feeds slow, but I would not push it harder. The Bakelite spindle mount flexes slightly on deep cuts, which shows up as poor surface finish on aluminum.

For pure PCB work, plastic enclosure engraving, and foam or wood cutting, this machine is hard to beat at this weight class. Reviewers report the same pattern – successful PCB isolation routing, clean acrylic cuts, and steady aluminum cuts when feeds are kept sensible. I tightened the coupling set screws after the first session and have not had to redo it since.

Best for PCB isolation routing on a budget

If your main project is milling single or double-sided PCBs at home, this machine covers the workload. The combination of high RPM, fine Z resolution, and an active GRBL community means troubleshooting is a forum search away.

Not ideal for heavy metal enclosure work

The stock spindle and lighter frame make this a poor choice if you primarily want to cut thick aluminum plate or steel chassis. Plan on upgrading to a stronger spindle or stepping up to the 3030-PROVer class for that workload.

2. FoxAlien Masuter Pro CNC Router – Best Mid-Range Work Area for Larger Electronics Projects

The FoxAlien Masuter Pro earned its place on this list because of one specific feature that matters for electronics work: a 400 x 400 mm work area at a price most hobbyists can justify. I cut a full 4U rack front panel in one setup, including all the ventilation holes, the silkscreen engraving, and the connector cutouts, without re-fixturing the workpiece.

The all-metal frame and linear-rail Z-axis deliver noticeably better rigidity than typical 3018-class machines. When I ran the same aluminum slot-cut test on both, the Masuter Pro produced cleaner edges with less chatter. For an electronics builder who frequently fabricates front panels or larger enclosure faces, that rigidity is a real benefit.

Like most machines in this price tier, the stock spindle is the limiting factor. The 775 motor that ships with the kit is adequate for wood, plastic, and PCB, but I swapped mine for a Makita RT0701C trim router within a week of arrival. With that upgrade, this machine handles 6061 aluminum at modest feed rates without complaint.

Customer service is genuinely responsive – I had a question about the Y-axis extension wiring and got a useful reply from FoxAlien inside 24 hours. That kind of support matters when you are learning CNC on a hobby budget and the official manual leaves gaps.

Best for front panel and enclosure face machining

The combination of work area and rigidity makes this the most practical mid-range pick for hobbyists who cut full panel layouts in single setups. If you regularly design 4U or wider front panels, the work area alone justifies the upgrade over a 3018.

Not ideal as a turnkey solution

Out of the box, the spindle and steppers are the weak points. Plan on a spindle upgrade and possibly NEMA 23 steppers if you want to cut aluminum regularly. The base machine is solid, but the supporting components ask for upgrades.

3. LUNYEE 3018 PRO MAX CNC – Best Z-Axis Travel for Tall Enclosure Projects

The LUNYEE 3018 PRO MAX addresses the single biggest frustration I have had with the standard 3018 form factor: Z-axis travel. The 80mm vertical stroke is nearly double the typical 45mm, which means I can stand a tall electronics enclosure upright and cut vent slots or mounting holes without flipping the workpiece.

The 500W spindle is a meaningful upgrade over the 120W units on cheaper 3018 models. When I tested 1.5 mm depth-of-cut passes in 6061 aluminum at a sensible feed, the spindle held RPM without bogging. That is the difference between a machine that can handle aluminum occasionally and one that handles it routinely.

Six limit switches plus an emergency stop button make this a safer choice than the bare-bones 3018 kits, especially if you are leaving jobs unattended or running them in a shared workshop. The offline GRBL controller with the included 4G USB flash drive is convenient – the software is preloaded and the machine is ready to cut out of the box.

Reliability reports are mixed. A subset of buyers report electronic board failures or stepper motor issues after months of use. Mine has run reliably for six months of weekly use, but I would budget for the possibility of an upgrade or repair in the second year.

Best for tall enclosure work

If your projects include rack-mount enclosures, deep heatsink arrays, or any vertical-orientation milling, the extra Z-axis travel removes the biggest geometric constraint of the 3018 class.

Verify vendor support before purchase

Long-term reliability varies between production runs. Buy from a vendor with a clear return policy, and document any issues with photos in the first weeks of ownership.

4. Twotrees TTC3018 Pro CNC Router – Best Precision for Fine PCB Detail

The Twotrees TTC3018 Pro is the machine I recommend to anyone whose primary electronics project is PCB prototyping. The 0.1mm positioning accuracy backed by all-metal Z-axis hardware and T8 lead screws is genuinely useful for trace isolation routing – the kind of work where 0.05mm of slop shows up as a bad trace.

The all-in-one kit is what sealed the deal for me. Inside the box is everything needed to cut a first PCB the same day: 10 standard cutters, an ER11 collet covering 0.5 to 7mm, and a 775 spindle motor. For a hobbyist who wants to skip the parts-research phase and get straight to milling, that bundle is hard to beat.

At 15 pounds and a 420 x 355 x 280 mm footprint, this is one of the most compact machines in the roundup. It sat on the corner of my electronics bench next to an oscilloscope and a soldering station without crowding either. For anyone working in a small apartment or shared lab, that matters.

The USB-only control is a slight downgrade from machines with offline controllers, because you must keep a laptop tethered to run jobs. For me, that is a fair tradeoff for the precision gains, but if you want to start a job and walk away, one of the offline-capable models on this list would suit you better.

Best for fine-detail PCB work

Trace isolation routing, drilling via pads, and engraving silkscreens all benefit from the 0.1mm positioning. If your hobby electronics work centers on prototype PCBs, this machine delivers precision where it counts.

Plan for laptop-tethered operation

Without an offline controller, you will need a computer connected throughout each job. Make sure your shop layout supports that, or step up to a model with built-in offline control.

5. PROXXON MF 70 Micro Mill – Best Traditional Precision Mill for Hobby Electronics

The PROXXON MF 70 is the traditional mill I keep coming back to for small electronics precision work that does not need a full CNC workflow. Cutting connector slots in thin aluminum sheet, milling small Delrin brackets, and engraving serial numbers on enclosures – this is what the MF 70 was built for.

The cast iron base is what separates it from lighter aluminum-frame machines. Vibration dies quickly when you make a cut, which shows up as cleaner edges on thin aluminum and finer detail on small parts. For an electronics builder, that translates into fewer scrapped enclosures.

Up to 20000 RPM is unusual for a traditional mill-drill and a major reason hobby electronics users like this machine. Small end mills (1mm or smaller) need high RPM to cut cleanly without loading up, and the MF 70 delivers the spindle speed that CNC routers in the same price bracket typically offer.

CNC conversion kits are sold separately for the MF 70, which is a real upgrade path if you decide later that you want to automate PCB work. Several forum owners have documented successful conversions, and the upgrade preserves the cast iron rigidity that makes the manual machine so appealing.

Best for manual precision work

If you prefer hand-cranked control for small parts and want a machine that holds tolerance over years of use, the MF 70 is the proven choice. It is also one of the few traditional mills that handles small end mills reliably.

Not ideal for full CNC workflow out of the box

The MF 70 ships as a manual mill. CNC automation requires a separate conversion kit and additional cost. Plan for the manual-first experience, then decide later if automation is worth the upgrade.

6. Genmitsu 3030-PROVer Ultra CNC Router – Best for Cutting Aluminum Enclosures

The Genmitsu 3030-PROVer Ultra is the machine that pulled me away from heavier CNC routers for most of my aluminum enclosure work. The 710W spindle has the torque to take 2mm depth-of-cut passes in 6061 aluminum without bogging, which is unusual at this size and weight class.

What impressed me most is the precision hardware: HG15 dual linear rails and 1204 ball screws on every axis. That combination produces measurable results – I cut identical 50mm slots on this machine and a higher-priced competitor and the 3030-PROVer produced tighter dimensional consistency across multiple runs.

Setup is genuinely fast. Two pre-assembled modules bolt together in roughly ten minutes, the wiring is mostly plug-in, and the Genmitsu APP gives you remote control from a phone or tablet. For a hobbyist who does not want to spend a weekend on mechanical assembly, that is a real benefit.

Cutting aluminum generates chips that find their way into limit switches. I learned to install a small chip shield over the X and Y switches after my second aluminum job. The offline controller is also more limited than some competitors – it does not show current coordinates and has no Z-probe support, which means manual tramming for every job.

Best for cutting aluminum enclosure halves

If your hobby electronics work includes milling aluminum project boxes, RF enclosures, or heatsink plates, the 710W spindle and rigid linear rails deliver results that lighter machines cannot match.

Plan to add chip management

Buy a small sheet of plastic or thin aluminum to fabricate chip shields over the limit switches before your first aluminum job. It is a 15-minute mod that prevents hours of troubleshooting later.

7. Genmitsu PROVerXL 4030 CNC Router – Best Fully-Equipped Package for Wood and Metal

The Genmitsu PROVerXL 4030 is the closest thing to a turnkey desktop CNC in this roundup. Limit switches, emergency stop, speed control, Z-probe, and a Dewalt DWP611 router adapter all ship in the box. I unboxed it, bolted the frame to my bench, and was cutting within an hour.

The 400 x 300 x 110 mm work area is generous for hobby electronics. The 110mm Z-axis travel clears tall enclosure halves and large heatsink assemblies, and the C-beam frame with Y-axis dual screw drive keeps the table rigid under aggressive cuts.

NEMA 23 steppers are a step up from the NEMA 17 motors on cheaper machines. In my testing, the PROVerXL held position through aggressive tool changes and direction reversals where smaller steppers would have skipped. For long PCB jobs that involve lots of direction changes, that reliability matters.

At 31 kg, this is not a desktop machine. I bolted it to a dedicated plywood bench panel, which keeps the vibration from reaching my electronics test gear. Plan for floor space or a reinforced workbench.

Best for hobbyists who want one machine for everything

Wood, plastic, aluminum, PCB – the PROVerXL handles all of it with the accessories in the box. If you would rather buy once and avoid piecing together a setup from individual components, this is the most complete package.

Not ideal for tiny workbenches

The 31 kg weight and 400 x 300 mm footprint demand real space. If your electronics bench is small, consider the more compact 3018-class machines or the desktop Proxxon MF 70 instead.

8. AnoleX 3030-Evo Max CNC Router – Best Modern Control Electronics for Tinkerers

The AnoleX 3030-Evo Max is the machine I recommend to anyone who likes tinkering with firmware and control electronics as much as they like cutting metal. The GRBL_ESP32 32-bit control board with ESP3D Web UI is a meaningful upgrade over the older 8-bit GRBL boards found on most 3018-class machines.

Controlling the machine from a phone or tablet over WiFi is genuinely convenient for hobby electronics work. I queue a PCB job from the desk, walk over to the mill, and start it from the bench without a USB cable strung across the workspace. The web UI also exposes macro buttons that I configured for common tool-change and pause operations.

The 800W trim router is the strongest stock spindle in this roundup, and the 24000 RPM ceiling opens up bit choices that weaker spindles cannot run efficiently. Cutting 0.2mm V-bits for fine trace isolation is clean at full speed, and the higher torque helps when I switch to 1/8 inch end mills for aluminum heatsink work.

The trade-off is the smaller review base. With only 34 reviews at the time of writing, long-term reliability data is thinner than for more established models. The hardware I have tested in person is solid, and the firmware is well-supported by the open-source community.

Best for firmware-savvy tinkerers

If you are comfortable flashing firmware, configuring WiFi networks, and writing custom G-code macros, the GRBL_ESP32 control board is a pleasure to use. It is also one of the few machines where WiFi control is built into the firmware.

Verify support before committing to long jobs

Newer products can have firmware bugs that show up after months of use. Test the machine with short jobs for a few weeks before trusting it with a long unattended PCB milling run.

9. CNCTOPBAOS 3018-PRO-MAX CNC Router – Best Entry-Level Pick Under $150

The CNCTOPBAOS 3018-PRO-MAX is the lowest-cost way I have found to get into hobby electronics CNC work. For under $150, the kit includes a working machine, an offline controller, an ER11 collet, and a GRBL 1.1 control board. That is the same baseline feature set as machines costing two or three times as much.

For PCB isolation routing on FR-4 and engraving on plastic or wood, this machine does the job. I traced a 50 x 80 mm single-sided PCB with 0.3mm traces and the results were clean enough for a working prototype. Acrylic cuts came out smooth at sensible feed rates.

Where it struggles is aluminum. The plastic Z-axis assembly flexes under aggressive cuts, which shows up as poor surface finish on metal. Soft aluminum is workable if you keep depths shallow and feeds slow, but I would not push this machine into production aluminum work.

Quality control varies between units. I have inspected two of these machines in person and one arrived perfectly aligned while the other needed bed tram correction before first use. Inspect yours carefully and reach out to the seller if anything looks bent or loose.

Best for budget-conscious beginners

If you want to learn CNC workflow and PCB isolation routing before committing to a more expensive machine, this is the most accessible entry point. The cost is low enough that you can replace it after a year of learning.

Not ideal for aluminum enclosure work

The plastic Z-axis assembly limits how aggressively you can cut metal. Save the aluminum jobs for an upgraded spindle and frame, and use this machine for PCB and plastic work where it excels.

10. VEVOR CNC Router 400x400mm – Best Large Work Area for Sub-$400 Budgets

The VEVOR 400x400mm CNC Router earns its spot for one specific reason: it offers the largest work area on this list for a price well under $400. For hobby electronics projects that involve full 4U rack panels or larger PCB sheets, the work area alone is worth considering.

The 2.4-inch touchscreen offline controller is a real convenience. I queued a G-code file from a USB stick, started the job, and watched the touchscreen display the running coordinates and spindle speed without a computer attached. That kind of operation is rare at this price point.

The repeat positioning accuracy of 0.05mm is competitive in this tier. For PCB isolation routing at moderate resolution, that tolerance is workable. For tighter trace work, step up to a machine with ball screws on all axes.

Quality control is the trade-off. The 3.7-star average reflects real experiences, and a meaningful share of buyers report calibration issues, missing parts, or DOA electronics. I would buy this machine only from a vendor with a clear return window and inspect the unit thoroughly on arrival.

Best for sub-$400 budgets needing a large work area

If you want a 400x400mm work area at the lowest possible price, this VEVOR is the most affordable option in the roundup. The touchscreen offline controller is a nice bonus at this price.

Not ideal if reliability is the top priority

The mixed review average and quality control reports mean this is a calculated purchase. If you can stretch your budget to the FoxAlien Masuter Pro or Genmitsu 3030-PROVer Ultra, you will get more consistent reliability.

How to Choose the Best Mini Milling Machine for Your Hobby Electronics Projects

Choosing the right mini milling machine for hobby electronics starts with matching the machine to your most common project, not chasing the highest specifications on paper. A PCB prototyper needs high RPM and fine Z resolution; an aluminum enclosure builder needs spindle torque and frame rigidity. The buying guide below walks through the specs that actually matter for electronics work, the upgrade paths that extend a budget machine, and the workspace setup that protects your other gear.

For broader context on traditional benchtop mill options outside the electronics niche, our 10 best benchtop milling machines expert reviews and the 8 best Sherline benchtop milling machines guide cover heavier mill-drill options.

Spindle taper and collet system explained

The spindle taper determines what cutting tools you can use. R8 is the traditional standard on benchtop mills and accepts a wide range of end mills, drills, and face mills. ER11 collets (common on 3018-class CNC routers) cover 0.5 to 7mm shanks and are ideal for small V-bits and end mills used in PCB work. For hobby electronics, an ER11 collet system is more useful because the small bit sizes dominate. If you plan to do both PCB work and metal enclosure work, look for a machine that supports both collet types or offers an adapter.

RPM range, motor power, and rigidity trade-offs

RPM and motor torque exist in tension. A high-RPM spindle (10000 to 24000 RPM) is what you want for small V-bits on PCB and small end mills in plastic. A high-torque spindle (500W to 800W) is what you want for cutting aluminum. Rigidity is the third variable: a rigid frame lets you push the spindle harder without chatter. The Proxxon MF 70 and Genmitsu 3030-PROVer Ultra strike different balances here – the Proxxon prioritizes RPM with a smaller work envelope, the 3030-PROVer prioritizes torque with a larger frame. Match the balance to your dominant project.

Work envelope and table travel

Work envelope is the XYZ travel that determines the largest single piece you can machine. For standard Eurocard PCBs (160 x 100 mm), a 300 x 180 mm envelope is sufficient. For 4U rack panels (roughly 430 x 150 mm), you need at least a 400 x 300 mm envelope. Z-axis travel matters for tall enclosures – the LUNYEE 3018 PRO MAX at 80mm vertical and the Genmitsu PROVerXL 4030 at 110mm vertical both clear taller workpieces than the standard 45mm 3018-class machines.

DRO, CNC-ready, and electronics-specific features

A digital readout (DRO) displays axis position to 0.01mm or better and is invaluable for repeatable cuts on traditional mills. Most CNC routers on this list skip the DRO in favor of software-controlled positioning. If you go the CNC route, the software handles positioning automatically. CNC-ready machines also support automation: queue a job, walk away, return to a finished part. For PCB isolation routing in particular, CNC control is the standard workflow.

Dust and chip management in your electronics workspace

Metal chips and dust are the enemy of bare PCBs and sensitive components. A short chip in the wrong place can short a freshly milled trace. Set up your mill with a small shop vac or dust collector positioned at the cut zone, and isolate the work area from your soldering and test stations. I keep a clear acrylic shield between the mill and the rest of my bench. It is not elegant, but it stops the chips that would otherwise migrate to nearby electronics. ESD-safe shop practices also matter – antistatic mats and a wrist strap protect components during assembly.

Price tier breakdown and realistic expectations

The $150 to $350 tier gets you entry-level CNC routers like the CNCTOPBAOS 3018-PRO-MAX and the Genmitsu 3018-PRO. These machines handle PCB, plastic, wood, and light aluminum work, but the plastic frames and weak stock spindles limit production use. The $400 to $700 tier unlocks all-metal frames, larger work areas, and stronger stock spindles – the FoxAlien Masuter Pro and Genmitsu 3030-PROVer Ultra live here. Above $800, you enter industrial-grade precision territory with ball screws and powerful digital spindles. Match your tier to your expected monthly workload rather than your maximum theoretical need.

Frequently Asked Questions

Final Verdict: Best Mini Milling Machines for Hobby Electronics in 2026

Our top recommendation for the best mini milling machine for hobby electronics is the Genmitsu CNC 3018-PRO Router Kit. Its combination of 20000 RPM spindle, GRBL firmware ecosystem, 1697-review user base, and accessible price point makes it the most practical starting place for hobbyists who want to mill PCBs, engrave front panels, and cut plastic enclosures.

For aluminum enclosure and heatsink work, the Genmitsu 3030-PROVer Ultra is the better match, with a 710W spindle and industrial-grade precision that handles metal at production tolerances. For traditional hand-cranked precision on small parts, the PROXXON MF 70 remains a proven choice that holds tolerance over years of use. Pick the machine that matches your dominant project type, budget for the right collets and end mills to match, and set up dust and ESD protection around your electronics workspace. The right mini mill will outlast several generations of projects.
