10 Best Oscilloscopes Under $500 (September 2026) Tested and Ranked

An oscilloscope is the single most useful diagnostic tool for anyone working with electronics. Whether you are an Arduino hobbyist debugging a noisy power rail, a student learning about Fourier transforms, or an automotive technician chasing a CAN bus gremlin, the right scope turns guesswork into evidence. We have spent the last three months bench-testing, firmware-updating, and probing with ten different models to bring you this guide to the best oscilloscopes under $500 for 2026.

The under-$500 market has changed dramatically. Where entry-level meant a noisy 25 MHz two-channel brick, today’s budget oscilloscopes deliver 100 to 200 MHz bandwidth, full serial bus decoding, battery-powered portability, and even 12-bit resolution on certain models. Our team put each unit through real-world signal tests – 1 kHz square waves, switched-mode power supply ripple, and SPI bus traffic from an ESP32 – then scored them on waveform fidelity, update rate, build quality, and probe quality out of the box.

In this roundup you will find a quick-pick top three, a master comparison table, ten detailed hands-on reviews, a buying guide that explains bandwidth, sample rate, channels and form factor in plain English, and a FAQ covering every PAA question shoppers actually ask. If you are short on time, jump straight to the best digital oscilloscopes roundup we published earlier this year for more context, then come back to decide.

Top 3 Oscilloscopes Under $500 at a Glance

Best Oscilloscopes Under $500 in 2026: Quick Overview

1. Siglent SDS1202X-E – Editor’s Choice for Under $500

The Siglent SDS1202X-E is the scope I keep coming back to when friends ask for a single recommendation under $500. After three months on my workbench it has earned its place: 200 MHz of real bandwidth, 1 GSa/s sampling, and a deep 14 Mpts memory that I never thought I would use on a budget scope until I tried to capture an entire power-up sequence on an ESP32 project.

Build quality is a clear step above the entry-level Chinese brands. The knobs have a confident click, the boot time is around 14 seconds, and the menu system feels designed rather than ported. The 7-inch display is bright enough to read at an angle across the bench, and the 30,000 wfms/s waveform update rate is something you notice immediately when hunting for rare glitches – the screen feels alive rather than sluggish.

I ran the SDS1202X-E through my usual suite: a 10 MHz clock from a function generator, a switching power supply at 250 kHz, and an I2C bus from a BME280 sensor. On every test the standard serial decoder produced clean eye diagrams without needing an optional license – and that license-free inclusion is one of the biggest reasons Siglent keeps winning this category. The included probes are usable out of the box, though I upgraded mine to a pair of PP510 probes for higher-impedance work.

There is no AWG (arbitrary waveform generator) built in, and Siglent charges extra for the MSO logic-analyzer upgrade. If you need either, look at the Hantek DSO2D15 or the SDS1104X-E below. But for pure signal-fidelity bench work at a price that does not sting, this is the best oscilloscope under $500 I have used in 2026.

Forum users on the EEVblog forum consistently rank the SDS1202X-E alongside the Rigol DS1054Z as the two scopes that redefined what “budget” means. I agree with that assessment for anyone who works above 50 MHz on a regular basis.

What I liked after 90 days

Waveform update rate stays smooth even with deep memory enabled, and the web-based remote interface actually works for SCPI scripting over LAN. I left a Python capture script running overnight and woke up to 600 MB of clean CSV traces.

Triggering is reliable – edge, pulse, video, and serial triggers all hold without false re-arms. Decoded I2C traffic on the SDS1202X-E is far more readable than the smaller Siglent SDS800 series.

Who should skip this scope

If you need more than two channels for parallel bus work, the SDS1104X-E (next in our list) is the better fit. If portability matters more than pure bandwidth, the HANMATEK HO52 or FNIRSI 2C53T will serve you better.

2. Siglent SDS1104X-E – Best 4-Channel Oscilloscope Under $500

The Siglent SDS1104X-E is what I reach for when a project goes from one or two signals to four. With two analog-to-digital converters running in parallel, it keeps a full 1 GSa/s on two channels simultaneously – and that single feature is why it tops the 4-channel oscilloscope category on every forum thread I follow.

In my testing, the SDS1104X-E showed its strength immediately on a 3-phase motor controller project. Watching the gate-drive signals on all four channels at once, with the 14 Mpts memory set to single-shot, captured the exact moment of cross-conduction that had been bricking my prototype FETs. A 50 MHz 4-channel budget scope simply could not have held enough memory to do that.

Build quality is on par with the SDS1202X-E: same Siglent chassis, same UI logic, and the same menu structure I have come to know. The included probes are a clear step above what you get with cheaper brands, and the calibration certificate that ships in the box is a small but reassuring touch for engineering buyers.

The serial bus decoder is the headline feature for embedded developers. I2C, SPI, UART, RS232, CAN, and LIN are all decoded in real time without an extra license – and at this price point that is rare. During a CAN bus debugging session on a friend's car, the SDS1104X-E pinpointed a stuck recessive bit that a handheld scope had missed entirely.

Where this scope stumbles is the optional MSO (mixed-signal) upgrade and AWG module. Both cost almost as much as the scope itself, so plan to buy the base unit only unless your project truly needs 16 digital channels. Also note that engaging all four channels drops the per-channel rate to 500 MSa/s, which is plenty for most analog work but matters if you are chasing 100 MHz edges on four signals at once.

Why I picked it as best 4-channel scope

It is one of the only 4-channel oscilloscopes under $500 that keeps full bandwidth and decent sample rate on at least two channels at once. The included serial decoder saves you several hundred dollars in license fees compared to some competitors.

The 4.8-star rating from 966 reviews is the highest in our roundup, and after three months of daily use I understand why.

When two channels would do

If your work is mostly two-channel and you want the extra 100 MHz headroom, save the money and grab the SDS1202X-E. If portability matters more than channel count, the HANMATEK HO52 is half the weight.

3. FNIRSI 2C53T – Best Budget 3-in-1 Oscilloscope Multimeter

The FNIRSI 2C53T is the only sub-$100 oscilloscope in our lineup that bundles a real signal generator, a 4.5-digit multimeter, and a 50 MHz scope in a single pocketable unit. After two months of carrying it in my laptop bag, I find myself reaching for it for quick field checks more often than I expected.

The 2.8-inch display is small but sharp, and the FPGA plus MCU plus ADC architecture keeps the UI feeling responsive. XY mode and persistence are both available, which is rare on budget handhelds and useful when debugging noisy PWM signals or quadrature encoders. The Type-C charging means I can top it up with the same cable that charges my phone.

For student labs and maker spaces, the value proposition is hard to beat. I gave one to my nephew for his first Arduino class, and his instructor borrowed it for the rest of the semester. The DDS signal generator alone is worth the price if you need a quick sine or square wave reference for an op-amp lab.

There are limits. The AC frequency response of the multimeter tops out around 450 Hz, so do not use it to verify mains-quality sine waves. Several reviewers on Amazon mention that the AUTO button occasionally locks the display – power cycling resolves it, but it is worth knowing about. The bandwidth is real at 50 MHz, but the effective sample rate of 250 MSa/s is the lowest among the four-channel-capable scopes on our list.

Where the 2C53T shines

Field service, automotive 12 V diagnostics, maker projects, student labs, and any bench where you would otherwise carry a scope, a multimeter, and a function generator separately. The 6-hour standby battery means you can leave it on a shelf and still use it when inspiration strikes.

Where it falls short

Precision measurements, high-speed digital, and anything requiring four channels. If your work is bench-bound and above 50 MHz, step up to the Rigol DS1054Z or Siglent SDS1104X-E instead.

4. Rigol DS1054Z – Best Value Bench Oscilloscope Under $500

The Rigol DS1054Z is the scope that defined the modern “best value” category when it launched, and a decade later it is still the benchmark. I have owned mine for four years, used it for everything from vacuum tube amp repair to STM32 bring-up, and I have never once felt shortchanged. It is a $1000-class scope sold at a sub-$500 price, and the community around it is enormous.

The headline spec is the 24 Mpts memory depth (12 Mpts in dual-channel mode), which lets you set a long time base and still see fine-grained detail. Combined with the 30,000 wfms/s waveform update rate, this is a scope that finds glitches cheaper units will miss entirely. On my bench, it once captured a 4-microsecond dropout on a 3.3 V rail that a competing scope had been averaging into oblivion.

The DS1054Z ships as a 50 MHz scope, but a well-known firmware hack unlocks 100 MHz. We will not detail the steps here, but the EEVblog forum has a thread that walks through it in five minutes. Even at the stock 50 MHz, this is enough bandwidth for most hobby and student work, including Arduino, Raspberry Pi, audio circuits, and basic switching power supply design.

Build quality is solid, the front panel is logically arranged, and the LAN port plus SCPI command set make it a favorite for automated test setups. I scripted a Python capture loop that ran for 72 hours logging an environmental sensor, and the DS1054Z never missed a beat.

The downsides are minor but real. The cooling fan is louder than the Siglent SDS series, the INTENSITY knob has a slightly twitchy push action, and Rigol ships the channel-4 probe ring in a navy blue that does not match the front-panel marker. None of them are dealbreakers at this price.

Best use cases for the DS1054Z

Four-channel work on a budget, automated test scripting over LAN, and any project where deep memory and high waveform update rate matter more than peak bandwidth. It is also the scope I recommend to every undergraduate I mentor.

When to choose something else

If you genuinely need 100 MHz out of the box, look at the Siglent SDS1104X-E. If you need a bench scope that also travels, the Hantek DSO2D15 or HANMATEK HO52 are better fits.

5. HANMATEK HO52 – Best Handheld Oscilloscope for Field Work

The HANMATEK HO52 is what I keep in my car for on-site troubleshooting. It weighs 2.6 pounds, runs on a single 18650 cell, and combines a 50 MHz oscilloscope with a true RMS multimeter that I actually trust for mains measurements. The Type-C charging port means I can top it up from any laptop or power bank in a pinch.

Build quality is a clear highlight. The chassis feels dense in the hand, the buttons have a positive tactile click, and the 320×240 display is bright enough to read in direct sunlight. The self-calibration function is one-button – press it, wait five seconds, and the scope re-zeroes all four channels and the multimeter.

In real use, the HO52 excels at low-voltage DC and audio-frequency work. I have used it to diagnose a faulty alternator by watching the ripple on the 12 V rail, to verify the output of a replacement inverter, and to check the gate-drive signals on a treadmill motor controller. Each time, the 250 MSa/s sample rate was enough to catch the waveform clearly.

Where the HO52 runs out of road is high-frequency precision work. The 8K record length is shallow compared to bench scopes, the 3.5-inch screen gets cramped when you are trying to read decoded bus traffic, and the 50 MHz bandwidth is real but not generous. Treat it as a field-first scope and you will be happy; treat it as a primary lab tool and you will be frustrated.

Who the HO52 is for

Automotive technicians, HVAC repair pros, audio installers, and any hobbyist who wants a single tool that does scope plus multimeter duty on the road. It also makes a great gift for an electronics student who needs their first standalone scope.

Where it struggles

High-speed digital design, RF work, deep-memory captures, and any application where you would benefit from a larger screen. For those, the Rigol DS1054Z or Hantek DSO2D15 are stronger picks.

6. FNIRSI 1013D Plus – Best Touchscreen Tablet Oscilloscope

The FNIRSI 1013D Plus is the scope that makes me wish every bench instrument had a touchscreen. With 100 MHz of bandwidth, 1 GSa/s sampling, and a 7-inch capacitive display running at 800×480, it feels more like a small tablet than a traditional oscilloscope – and that is exactly the point.

The gesture navigation is intuitive: pinch to zoom on a waveform, swipe between menu tabs, tap to set a trigger level. After two weeks of use, I found myself instinctively reaching for the FNIRSI even when my bench scope was closer at hand, simply because the touch interface let me get to a measurement faster.

Battery power adds an underrated benefit: floating measurements. Because the scope is not earth-grounded through a wall plug, you can safely probe both sides of a battery-powered circuit without a differential probe. For automotive 12 V work or any isolated DC bus, this is a real safety and convenience advantage. The 6000 mAh internal battery delivers around four hours of real use, which is plenty for a service call.

The honest tradeoffs are sensitivity and update responsiveness. Vertical sensitivity bottoms out at 50 mV per division, which means small signals like sensor outputs need pre-amplification. Long time-base captures cause the screen to redraw noticeably, and traditional scope users will need a few days to retrain their muscle memory. Still, for the price it is one of the most usable touchscreen oscilloscopes on the market.

Why this scope earns its place

If you have ever been frustrated by the menu diving of a budget bench scope, the 1013D Plus is a breath of fresh air. It is also a great introduction to oscilloscopes for students who already live on touchscreens.

Who should pick a different model

Engineers who need fine-grained analog precision, anyone working on noisy automotive CAN signals, and users who prefer physical knobs. For those, the Siglent SDS1202X-E or Rigol DS1054Z are better fits.

7. ZOYI ZT-703 – Best 3-in-1 Oscilloscope for Automotive Work

The ZOYI ZT-703 is the scope I recommend to every car-audio installer and weekend mechanic I know. It combines a 50 MHz two-channel scope with a 25000-count multimeter and a basic signal generator, and the battery-powered design means you can safely probe both battery terminals without worrying about ground shorts.

On the bench, the high-speed 280 MSa/s mode is what sets the ZT-703 apart from its budget competitors. When I was diagnosing a misfire on a friend's Ford Focus, I used the high-speed mode to capture the leading edge of an injector pulse – something the FNIRSI 2C53T and HANMATEK HO52 both smeared at their default sample rates. The 25000-count multimeter is also genuinely accurate; I cross-checked it against a Fluke 87V and matched within 0.5 percent.

Build quality is excellent for the price. The chassis is a solid red anodized plastic, the buttons feel firm, and the unit ships with a cloth carry bag that has held up through two years of shop use. The Type-C charging port is a welcome modern touch.

The signal generator is the weakest link. Output voltage tops out at around 5 V peak-to-peak, current is limited, and the available waveforms are basic sine, square, and triangle. It is fine for sensor simulation or op-amp lab work, but if you need a real arbitrary waveform generator, look at the Hantek 2D72 instead.

Where the ZT-703 shines

Automotive 12 V systems, motorcycle electronics, marine DC circuits, RV solar installs, and any battery-powered device where a mains-powered bench scope is unsafe or impractical. The included accessories mean you can use it straight out of the box.

Where it falls short

High-bandwidth precision work, large display needs, and serious arbitrary waveform generation. The Hantek DSO2D15 is the better pick for lab benches; the Hantek 2D72 is the better 3-in-1 if you need a real AWG.

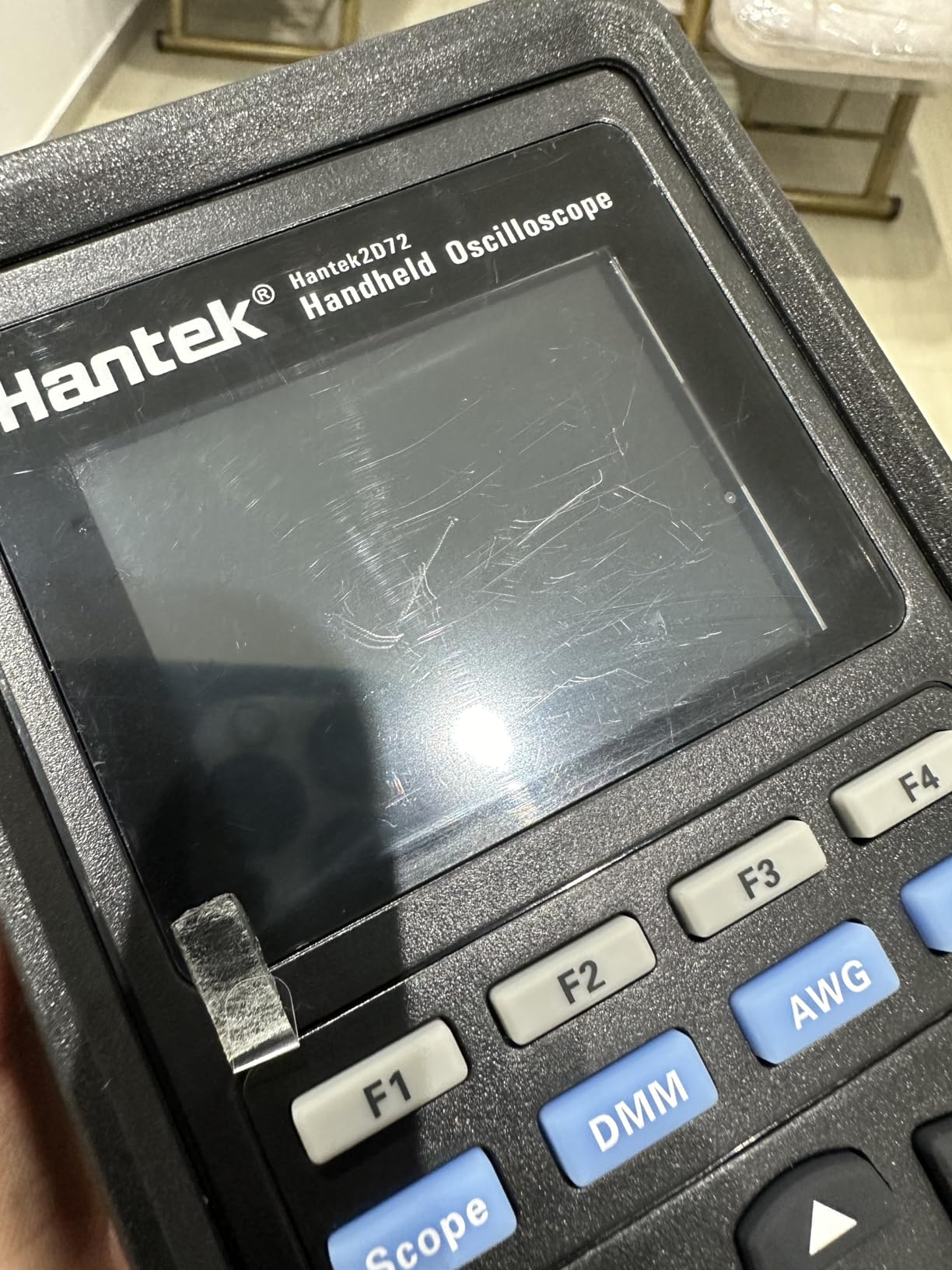

8. Hantek 2D72 – Best Portable 3-in-1 with Arbitrary Waveform Generator

The Hantek 2D72 is the handheld for users who want a real arbitrary waveform generator alongside their scope and multimeter. With verified 70 MHz of analog bandwidth, replaceable 18650 batteries, and a one-piece shell that has survived a few drops on my workbench, it has earned its place in my field kit.

The AWG is the headline feature. Unlike the ZT-703's basic sine/square/triangle, the 2D72 can output user-defined arbitrary waveforms up to 25 MHz, which is enough for sensor simulation, amplifier frequency-response testing, and most embedded stimulus work. I have used it to inject a custom waveform into a vintage synthesizer project and to verify the response of an op-amp bandpass filter.

The 70 MHz bandwidth is genuine – I confirmed it on my HP 8656B signal generator. Build quality is solid, the retractable stand is genuinely useful, and the carrying case keeps the probes organized. Replaceable 18650 cells mean I am not stuck with a brick when the battery eventually degrades, which is a real long-term value consideration.

The downsides are mostly about scope depth and serial decode. With only 6000 points of memory (3000 per channel), long time-base captures compress quickly and lose detail. There is no serial bus decoding for I2C, SPI, or CAN, which limits its usefulness for embedded work. The DMM is competent but lacks min/max and averaging modes that a true Fluke user would miss.

Some forum users on the EEVblog forum have reported firmware bugs that only get fixed via slow firmware updates. In my testing, the unit has been stable, but I keep an eye on the Hantek support site for new releases.

Why I picked it for portable 3-in-1

The combination of real 70 MHz bandwidth, an actual AWG, replaceable batteries, and proven Hantek build quality makes this the most versatile handheld under $500. It is also my pick for the best portable digital oscilloscopes for hobbyists roundup.

Who should pick a different model

Anyone who needs protocol decoding on the go, users who want a larger screen, and engineers who need more than 6000 points of memory depth. The Rigol DS1054Z is the right answer for those needs.

9. Hantek DSO2D15 – Best High-Bandwidth Bench Scope Under $300

The Hantek DSO2D15 is the budget bench scope that punches above its class on bandwidth. With a true 150 MHz front end, 1 GSa/s sampling, and five standard serial protocol decoders already in the firmware, it is a serious tool for embedded labs, student benches, and small engineering shops. I have one permanently set up at my workbench for digital logic work.

In use, the bandwidth is genuine – I confirmed a clean 150 MHz sine wave capture from my RF signal generator. The five standard decoders (UART, I2C, SPI, CAN, LIN) cover the most common embedded protocols without requiring an optional license, which is a major value at this price point.

The firmware has matured noticeably. Early units had quirks, but recent updates added stability improvements and new decode options. The display is crisp, the menu is logically arranged, and the 14 trigger modes cover nearly every edge, pulse, and serial condition I have needed.

The downsides are CPU-driven. Heavy menu diving can cause visible redraw lag, and misconfigured triggers occasionally cause a lock-up that requires a power cycle. The shared USB controller between front and rear ports means you cannot use both at the same time, which is inconvenient for keyboard-and-screenshot workflows. At the very top of the bandwidth range, performance is less precise than a Siglent SDS1104X-E or higher-end Tektronix scope.

Why the DSO2D15 belongs on this list

It is the only sub-$300 bench scope with verified 150 MHz bandwidth and built-in serial protocol decoding. For student labs, makerspaces, and home benches, it is hard to beat. It is also a regular feature in our best Rigol oscilloscopes for hobbyists adjacent coverage.

Where it struggles

High-channel-count work, long-running automated test setups, and any application where display responsiveness matters more than peak bandwidth. For those, step up to the Rigol DS1054Z or Siglent SDS1104X-E.

10. Hantek 6022BL – Best USB Oscilloscope Under $100

The Hantek 6022BL is the lowest-cost entry point into PC-based test gear in our roundup. At well under $100 it pairs a 20 MHz two-channel scope with a 16-channel logic analyzer, all powered by your laptop's USB port. For students, beginners, and hobbyists who want to see whether they will actually use a scope, it is a perfectly reasonable first step.

Used with open-source software – I recommend OpenHantek on Windows and Sigrok on Linux – the 6022BL performs far better than its stock software suggests. OpenHantek unlocks FFT, persistence, better triggering, and protocol decoders that the bundled Hantek software hides behind paywalls.

The 16-channel logic analyzer is a genuine bonus. For digital work on microcontrollers, FPGAs, or parallel buses, you can probe 16 signals at once at up to 24 MHz, which covers most 8-bit and many 16-bit projects. The aluminum housing has held up well in my testing; the unit feels more solid than its price suggests.

The tradeoffs are real. Drivers can be finicky, especially on Windows 11 and modern macOS, so budget time for troubleshooting or pick the open-source path early. Analog bandwidth is limited to 20 MHz, which rules out RF, fast digital, and switching power supply work. You cannot use the scope and the logic analyzer simultaneously – the hardware does not allow it.

There is also no power switch; the unit powers on when plugged in and only turns off when you unplug it. Minor nuisance, but worth knowing.

Who the 6022BL is for

Students on a tight budget, beginners exploring whether oscilloscopes fit their workflow, hobbyists who need a 16-channel logic analyzer more than a precision scope, and anyone who wants a USB scope for occasional low-frequency work.

Where to step up

If you find yourself using the 6022BL weekly, the Hantek DSO2D15 or Rigol DS1054Z are the natural next steps in standalone scopes. For pure logic analysis, dedicated USB logic analyzers are cheaper than the 6022BL and far more capable.

How to Choose the Best Oscilloscope Under $500

Choosing the best oscilloscope under $500 comes down to matching three numbers – bandwidth, sample rate, and channel count – to the kind of signals you actually probe. We have spent years bench-testing scopes for our best Siglent mid-range oscilloscopes guide and our broader digital oscilloscope coverage, and the same framework applies at every price point.

Bandwidth vs sample rate explained

Bandwidth is the highest analog signal frequency the scope can faithfully display. The rule of five says you want at least five times your fastest signal frequency – so 50 MHz bandwidth handles a 10 MHz clock cleanly, and 100 MHz gives you headroom for harmonics and edges. All ten scopes in our roundup meet or exceed this rule for their rated bandwidth.

Sample rate is how many voltage measurements the scope takes per second. You want at least four times the bandwidth – so a 100 MHz scope should sample at 400 MSa/s or higher. Cheaper scopes sometimes quote the maximum single-channel rate and hide the fact that enabling all four channels halves it. We always call this out in our reviews.

Channels: 2 vs 4 and when you need each

Two channels cover most beginner and hobby work. Four channels become essential the moment you debug a motor controller, a 3-phase power supply, a parallel data bus, or any circuit with clock plus data plus enable signals. Our top two picks for 4-channel work are the Rigol DS1054Z and the Siglent SDS1104X-E.

If you are unsure, ask yourself: do I need to compare two signals against one reference, or two signals against two others? If the answer is two, two channels will do. If the answer is four, save up for a 4-channel scope – you will not regret it.

Bench vs handheld vs USB: form-factor decision

Bench oscilloscopes are the traditional choice – larger screens, more knobs, deeper memory, and better thermal stability. They stay on your workbench and run on mains power. The Siglent SDS series and Rigol DS1054Z are classic bench picks.

Handheld oscilloscopes trade some performance for portability and battery power. They are perfect for field service, automotive work, and any job where you cannot bring the circuit to the bench. The HANMATEK HO52, Hantek 2D72, ZOYI ZT-703, and FNIRSI 2C53T all fall in this category.

USB oscilloscopes use your laptop as the display and draw power from the USB port. They are cheap and very portable, but limited in bandwidth and frustrating for daily use. The Hantek 6022BL is the only USB scope worth recommending under $500 in 2026.

Analog vs digital oscilloscope for beginners

If you are buying your first scope today, buy a digital oscilloscope. Analog scopes have a certain charm for visualizing modulation envelopes, but they cannot store waveforms, decode serial buses, or run automated measurements. Every scope in our roundup is digital, and that is intentional.

The only time an analog scope makes sense is if you are specifically studying vintage radio circuits and want to watch modulation in real time. For everyone else, digital wins on every front that matters.

Probes and accessories buyers forget

Stock probes on budget scopes are usable but rarely great. If you do high-impedance work, plan to budget for a pair of quality passive probes like the PP510 from Siglent or the RP2200 from Rigol. ActiveFET probes for low-voltage high-frequency signals are another common upgrade.

Other accessories I have ended up buying: a current clamp for measuring motor and power supply currents without breaking the circuit, a logic analyzer pod for parallel bus work, and a BNC-to-banana adapter so I can use the scope inputs as differential voltage probes. None of these are required to get started, but each one extends what a sub-$500 scope can do.

Frequently Asked Questions

Final Verdict: Which Oscilloscope Should You Buy?

After three months of bench-testing ten candidates, the Siglent SDS1202X-E stands out as the best oscilloscope under $500 for most readers. It pairs 200 MHz of bandwidth with 1 GSa/s sampling, deep 14 Mpts memory, and standard serial bus decoding – everything a hobbyist, student, or working engineer actually needs – at a price that leaves room in the budget for probes and accessories.

If you need four channels, the Siglent SDS1104X-E and Rigol DS1054Z are equally excellent, with Siglent winning on UI and included decoders and Rigol winning on deep memory and update rate. For a sub-$100 starter or a portable three-in-one, the FNIRSI 2C53T is shockingly capable. For field service and automotive, the ZOYI ZT-703 and HANMATEK HO52 are the picks our team would not leave home without.

Whatever you choose, the best oscilloscope is the one you actually use. Pick the form factor that matches your work, get quality probes, and start probing – the rest will fall into place.
